Pressure Reducing Valve MODEL 30 PR UL
Pressure Reducing Valve, An automatic, pilot controlled, pressure reducing valve actuated by the pipeline pressure. The valve regulates to a steady, preset downstream pressure regardless of upstream pressure or flow rate fluctuations. In case of excessive downstream pressure, the valve closes drip tight.
FEATURES & BENEFITS
Simple field adjustable pressure setting; no special tools & no system downtime
Superior design featuring low pressure losses at high flow rates
Low lifelong maintenance costs due to unique frictionless internal trim design
High flows & working pressures (PN25/375psi)
Stable regulation near zero flow to maximum design flow
Regulates at low flow and high pressure differential without bypass or U/V port design
Out of the box fully assembled & tested valves
Extensive valve & trim materials selection and corrosion protection coating
Stainless Steel seat as standard
CERTIFICATION & COMPLIANCE
.png "Pressure Reducing Valve MODEL 30 PR UL")
• ANSI FCI 70-2 Class VI seat leakage class
• UL listed under VLMT category
• Lloyd’s type approval
TYPICAL APPLICATIONS
Pump & Water Tanks
Fire Suppression Systems
Petrochemical, Oil & Gas Installations
Tunnels
Power Generation, Transformer & Transmission Plants
Onshore / Offshore
Mining
Operations

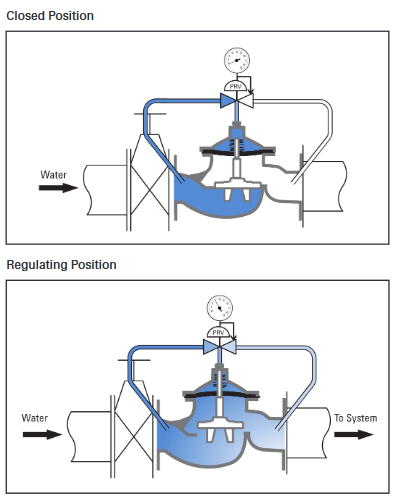

The 30-PRUL is a pilot-controlled, pressure reducing valve, actuated by the pipeline pressure.The valve accurately regulates to a steady, preset downstream pressure, down to near-zero flow rates, regardless of upstream pressure fluctuations and valve size. In case of excessive downstream pressure, the valve closes drip tight. The valve’s unique design eliminates the need for a special low flow plug design (such as V or U-ports), or the installation of additional smaller-sized bypass valves.
The valve’s low-friction internal trim design utilizes an LTP® (Linear Throttling Plug) guide and a pre-shaped reinforced diaphragm. The standard and simple single-chamber valve allows easier assembly, improved longevity and reduces periodic inspections and maintenance. When required, maintenance is easily done onsite and in-line. When planning operation and design, please consider the following:
• The valve should be suited to the maximum designed flow and allowed head loss.
• For added safety, installing a downstream pressure relief valve (30-PSUL, 77-PSUL, 44-PSUL or 108FCA) is highly recommended.
• Large pressure differentials may cause cavitation damage. Consult OCV for unique solutions if such conditions are expected
.png "Pressure Reducing Valve MODEL 30 PR UL")

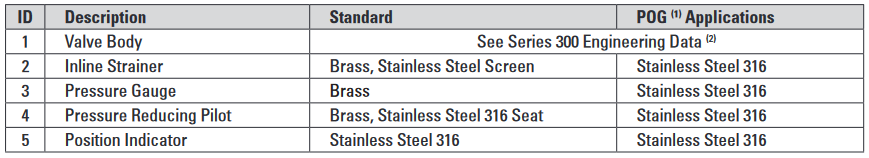

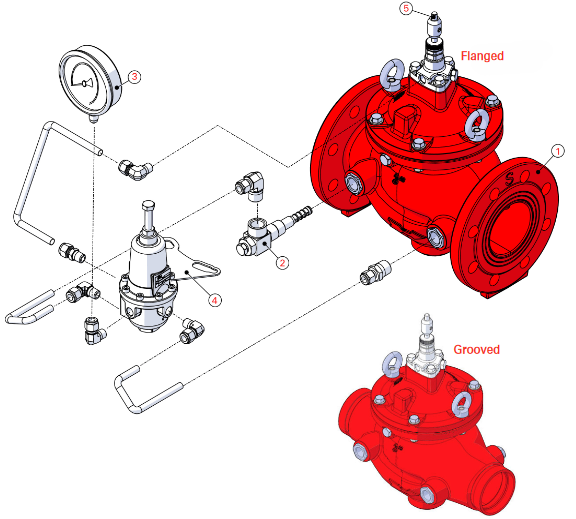

TYPICAL MATERIALS
.png "Pressure Reducing Valve MODEL 30 PR UL")
.png "Pressure Reducing Valve MODEL 30 PR UL")
