Power supply unit for fire alarm cabinet N3060 Model PCA-N3060-PSU
PCA-N3060-PSU
❌ provides 24VDC power to system cards in FACP to maintain stable operation, PCA-N3060-PSM consists of two parts, Main Power Supply and AC/DC Switching Power Supply . The Main Power Supply supplies AC input power to the AC/DC Switching Power Supply. 24 VDC generated in , AC/DC Switching Power Supply, fed back to Main Power Supply, and supplied to system cards
• UL 864, 9th edition listed
• Input 110 to 240 VAC
• Supports 4 NAC circuits, Class A (Style Z) and Class B (Style Y)
• Total 6.0 A for NAC . circuit
• 3 programmable C-type relays and 1 dedicated fault relay
• An auxiliary power circuit (1.0 A)
• NAC synchronization of AMSECO, GENTEX and WHEELOCK
• A serial output for transmitting status information
• LEDs for active status
• Easy to install
+++ Part No. PCA-N3060-PSU
| No | Item | Specification |
| 1 | Input AC power rating | 110 to 240 VAC |
| 2 | Input AC voltage frequency | 50/60 Hz |
| 3 | Ambient operating temperature | 0 to 49 °C (32 to 120 °F) |
| 4 | AC input power | Max. 2.0 A at 120 VAC, Max. 1.0 A at 240 VAC |
| 5 | Standby current up to 24 VDC | 80 mA (not including output load) |
| 6 | Maximum alarm current 24 VDC | 210 mA (not including output load) |
| 7 | Current output NAC | 3.0 A maximum per circuit () |
| 8 | Output wire type NAC | NFPA Class A (Type Z) or Class B (Type Y) |
| 9 | Maximum auxiliary power current | 1.0 A at 24 VDC |
| 10 | Rated Output Contact (Relay) | 24 VDC/2.0 A, 125 VAC/0.5 A |
| 11 | Maximum battery charge current | 2.0 A |
| 12 | Standby battery capacity range | 12 to 65 AH |
| 13 | Fuse battery capacity | 15 A |
| 14 | Type of remote transmission line | NFPA Lớp B (Style 4) |
| 15 | Maximum remote reporting | 30 unit |
| 16 | Maximum wire length for remote transmitter | 1.2 km (with 40 Ω and 0.4 µF) |
| 17 | Communication for remote message indicator | RS-485 |
| 18 | Serial connection | RS-232C |
| 19 | Size |
222 mm (8,74 ”) (H) x 85 mm (3,35”) (W) x 40,5 mm (1,59 ”) (D)(Switching Power Supply OnlyAC / DC) |
) First unit of PCA-N3060-PSU:
• Up to 6.0 A is available for four circuits.
• When using NAC synchronization in one to three of the four circuits, the total output of the synchronization circuits is limited to 3.0 A and the total power of the asynchronous segments is 3.0 A. .
• When using all four circuits for synchronization, the total output is limited to 4.0 A. Second unit of the PCA-N3060-PSU:
• Up to 10.0 A is available for four circuits.
• When using synchronization in one to three of the four circuits, the total output of the synchronization circuits is limited to 3.0 A and the total power of the asynchronous segments is 3.0 A.

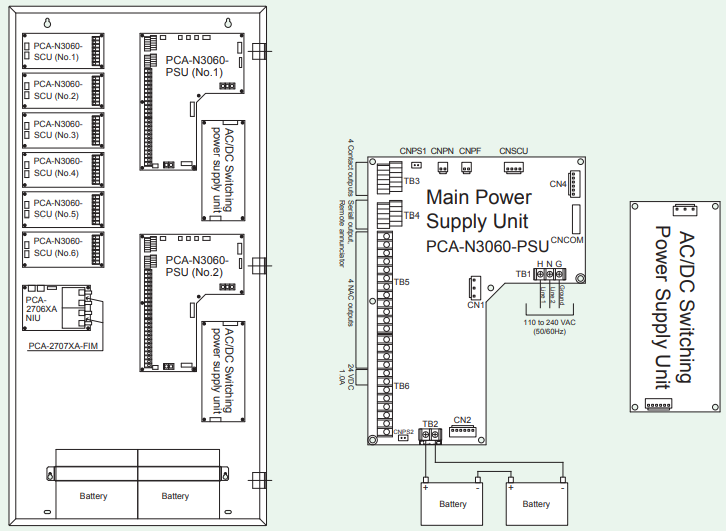

• When all four circuits are used for synchronization, the total output is limited to 4.0 A. +++ How to install and wire
.png "Bộ nguồn cung cấp điện tủ báo cháy N3060 Model PCA-N3060-PSU")
