Post Indicator Valve Grooved PIG and PIG2

Manufacture: INGESCO
Product code: PIG2

Head valve indicates opening and closing position of PIG and PIG2 fire fighting valves, also known as submersible gate valves, used for fresh water systems, fire fighting systems, contact 0917911114

Zalo

Consulting hotline: 0944934114
Product information

Technical Features

• Sizes available (Nominal) : 2”/DN50, 2½”/DN65, 3”/DN80, 4”/DN100, 5”/DN125, 6”/DN150, 8”/DN200, 10”/DN250 and 12”/DN300

• Working pressure : 21 bar (300 psi)

• Seat Type: Resilent wedge

• Finish : Fusion bonded expoxy coating internal and external

• Connections : Grooved metric or AWWA C606 standard

• Specification : Design and dimensions conform to AWWA C515

• Operation : For use with IPV or IPW indicator posts

• Approvals : FM (2-12"), UL (4"-12") Remark : No post flange supplied with 2”, 2½” & 3”, and size 2” is FM approved only and size 5” is UL listed only

Post Indicator Valve Grooved PIG and PIG2

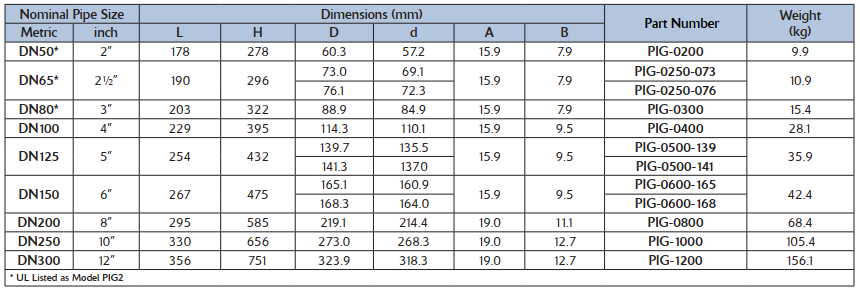

Dimensions

Post Indicator Valve Grooved PIG and PIG2

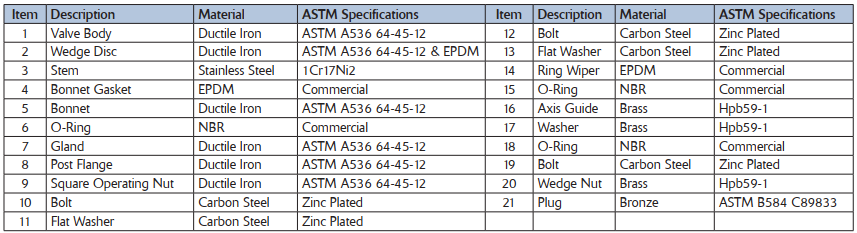

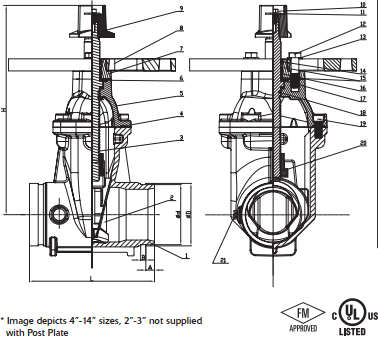

Structures

Post Indicator Valve Grooved PIG and PIG2
