Pneumatically Actuated Deluge Valve 116FC
Pneumatically actuated, pilot controlled deluge valve, actuated by the pipeline pressure. The valve is closed in its normal, set position and opens when the pneumatic supply pressure is removed. An emergency manual release valve is fitted as standard.
FEATURES & BENEFITS
Opens quickly when the pneumatic supply pressure is removed
Manual override to open the valve regardless of pneumatic pilot position
Visual indicator for indication of valve position
Large supply drain port to drain inlet side piping
Pilot operated main valve
No adjustments are necessary
Factory tested
UL Listed for deluge service in sizes 3” thru 10”
Can be installed vertically or horizontally
ANSI Flanged Class #150 or Class #300
Wide range of materials available
Options available including opening and/or closing speed controls, limit switch assembly and pressure gauge(s)
CERTIFICATION & COMPLIANCE
.png "Pneumatically Actuated Deluge Valve 116FC")
• ANSI FCI 70-2 Class VI seat leakage class
• Fire tested to EN ISO 19921
• UL listed under VLFT category
• ABS type approval
TYPICAL APPLICATIONS
Automatic or Manual Actuated Fire Suppression Systems
Petrochemical, Oil & Gas Installations
Tunnels
Power Generation, Transformer & Transmission Plants
Flammable Storage
Hangars & Airport Terminals
Onshore / Offshore
Mining
OPERATION

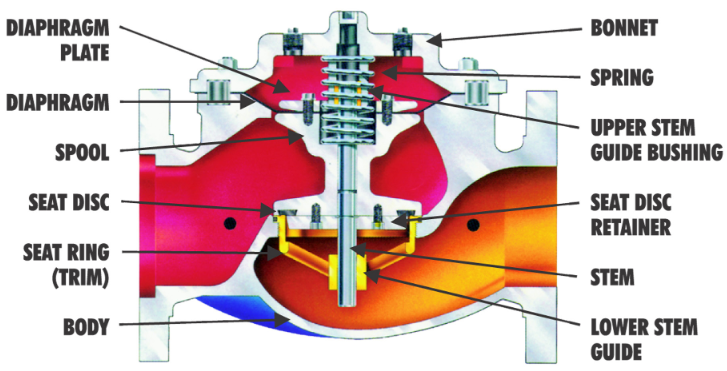

The basic control valve [1] used in this deluge system is a diaphragm actuated globe valve which closes with an elastomer-on-metal seal, hydraulically operated control valve engineered specifically for fire protection systems.
In the standby position, the deluge valve is held closed by the upstream water pressure, trapped in the valve’s control chamber. The water pressure enters the control chamber through the priming line ball valve [5A], a Y-type strainer [4] and an ejector [3].
Under fire conditions, pneumatic pressure is removed. The pressure in the pneumatic pilot [2] drops, causing it to open and allowing the water to drain the deluge valve’s control chamber. The deluge valve opens instantly and allows water to flow the pipeline and through the open sprinklers over the protected area.
Manual emergency actuation is enabled by opening the emergency manual activation valve [5B]. The deluge valve opens instantly and allows water to flow the pipeline and through the open sprinklers over the protected area.
A visual indicator [6] provides indication of the valve’s position at a glance.
.png "Pneumatically Actuated Deluge Valve 116FC")

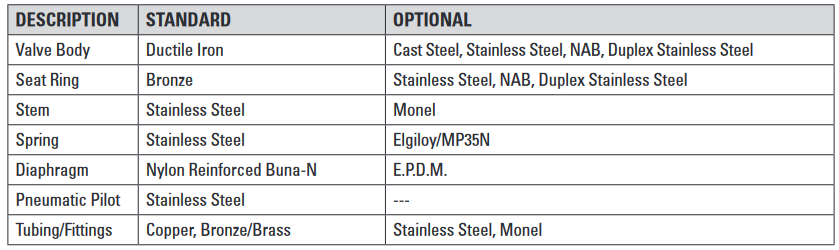

TYPICAL MATERIALS
.png "Pneumatically Actuated Deluge Valve 116FC")
.png "Pneumatically Actuated Deluge Valve 116FC")
