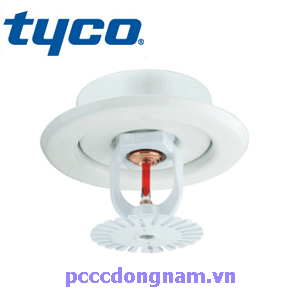

Pendent Sprinkler Tyco Ty34334
Regulations when using the fire extinguisher CO2 ??? Reflective reaction type Direction down Diagram K 5.8 100% genuine Commitment to warranty 6 months 0917911114 Free shipping HCM and Hanoi
Tyco Ty34334 Injective Head down in the LFII residential nestment line Quick response to spray flow K = 5.8. Nozzles are designed for use for residential areas such as houses, apartments, dormitories, hotels with high heat sensitivity and specially designed water distribution characteristics to control fire and increase Residential evacuation capacity.
đầu-phun-tyco-ty3934-Hướng-Xuống
Tyco Tyco Ty3934 injecting head specifications - Nozzles applied to fire fighting systems:
+ Dry and wet residential sprayer system for fixed housing has one or two apartments and mobile homes according to NFPA 13D standards. + Dry and wet residential sprayer system for housing facilities up to four floors according to NFPA 13R standards.
+ Dry and wet injection system for a part of residential areas according to NFPA 13 standards - Meeting: UL, C-UL, NSF / ANSI 6. - Maximum working pressure: 175 psi (12.1 bar).
- Spray coefficient: k = 4.9 GPM / Psi½ (70.6 LPM / BAR½).
- Size of nozzle: 1/2 inch NPT (DN15).
- Glass tube size: 3mm
- Activation temperature:
+ 155 ° F (68 ° C) Red glass tube + 175 ° F (79 ° C) Yellow glass tube
- There is an appropriate cap for false ceiling works, using a stylish 20-layer capture cap with a 6.4 mm or 12.7 mm gap (reducing the injection length of the nozzle length Must cut when installed).
- Plating material: Natural copper, Pure White, Signal White, Jet Black, Chrome Plated.
1.Sprinkler Tyco>>Tại đây
2. Sprinkler TPMC>>>Tại đây
3. Sprinkler Fesco>>>>>>>Tại đây
4. Viking >>>>>Xem tại đây
You will receive a quote from us as soon as possible..
