Novec1230, Hfc227ea FM200 degassing system odorless
Brand:xingjin ✔️Certification:CAL, CMA, CNAS, ILAC-MRA, CCC , Model Number:QMP40/4.2, QMP70/4.2, QMP100/4.2, QMP120/4.2, QMP150/4.2, QMP180/4.2, QMP70/ 5.6, QMP90 / 5.6, QMP120 / 5.6 , Instrument nitrogen pressure :6.0 ± 1.0Mpa (20
℃) , Trigger time : :≤10 seconds , Test standard:GB25972-2010 , Model Extinguishing:Inundated enclosed , Capacity :40L, 70L, 90L, 100L, 120L, 150L, 180L , Weight :38kg, 66.5kg, 85.5kg, 95kg, 114kg, 142.5kg, 171kg , Type:pipe
Novec1230 hfc227ea . automatic odorless fm200 gas fire extinguishing system
| STT | Specifications | System 4.2Mpa | System 5.6Mpa |
| 1 | Capacity | 40Ltr, 70Ltr, 100Ltr, 120Ltr, 150Ltr, 180Ltr | 70Ltr, 90Ltr, 120Ltr |
| 2 | Model | QMP40 / 4.2, QMP70 / 4.2, QMP100 / 4.2, QMP120 / 4.2, QMP150 / 4.2, QMP180 / 4.2 | QMP70 / 5.6, QMP90 / 5.6, QMP120 / 5.6 |
| 3 | Full pressure | 4,2Mpa | 5,6Mpa |
| 4 | Maximum filling rate | 0,95kg / L | 1,08kg / L |
| 5 | Activation time | ≤10 second | |
| 6 | Boot source | DC24V / 1.6A | |
| 7 | Nitrogen driving device | 6,0 ± 1,0Mpa | |
| 8 | Storage environment | Temperature -10 ~ 50 ℃ Relative humidity: ≤97% |
|
| 9 | Proportion | ≤800m² | |
| 10 | Volume | ≤3600m³ | |
Descriptions
- Fm200 (htc-227ea) is a colorless, tasteless, non-corrosive and insulating gas, without residue and pollution after fire extinguishing. And its ODP is zero. It is an environmentally friendly gas used for fire fighting. In addition, because of such a feature, it can be used in places where electrical fires and explosions are particularly prone.
- Combined with fire fighting equipment and electronic accessories, the whole system can be activated automatically. It can monitor the situation of the protected area through the detection devices and then it can also start the fire fighting equipment through the electromagnetic actuator automatically. So the whole system can achieve full automation. Therefore, avoiding the event of a fire occurring without anyone noticing and also saving a lot of costs of hiring workers to monitor the protected area.
- Management of multiple zones is also under the safety control of the whole system. We can use a system to protect multiple zones through selective valves. It can allow the replacement of the entire system targeting different protection zones. The agent may be released the fire site. It will be very effective to put out the fire in a short time. One thing to mention, is to prepare a little room to store the whole system.
Applications
- Electronic computer rooms, data processing centers, telecommunications facilities, process control, expensive medical equipment, industrial equipment, libraries, museums and art galleries, clean rooms , emergency power supply facilities, flammable liquid storage areas, etc.
- Places prone to fire such as spray paint production lines, old electrical equipment, rolling mills, printers, oil switches, oil-immersed transformers, molten impregnated tanks, storage tanks, large generators, equipment drying, grinding coal cement production process, engine room, cargo hold, etc.
Worrking

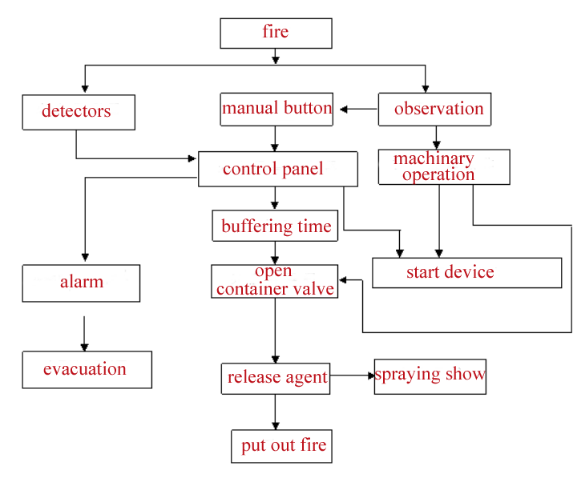

- This is an illustration of the working principle of the whole system,
.png "Hệ thống khử khí Novec1230, Hfc227ea FM200 không mùi")
You can refer to similar products..HERE
You will receive a quote from us as soon as possible..
