Naffco UL FM Programming Board
Naffco UL/FM Programming Board - Repeater Panel Genuine imported, Unlimited supply, Guaranteed genuine commitment, Contact now 0917 911 114 for free consultation 24/7

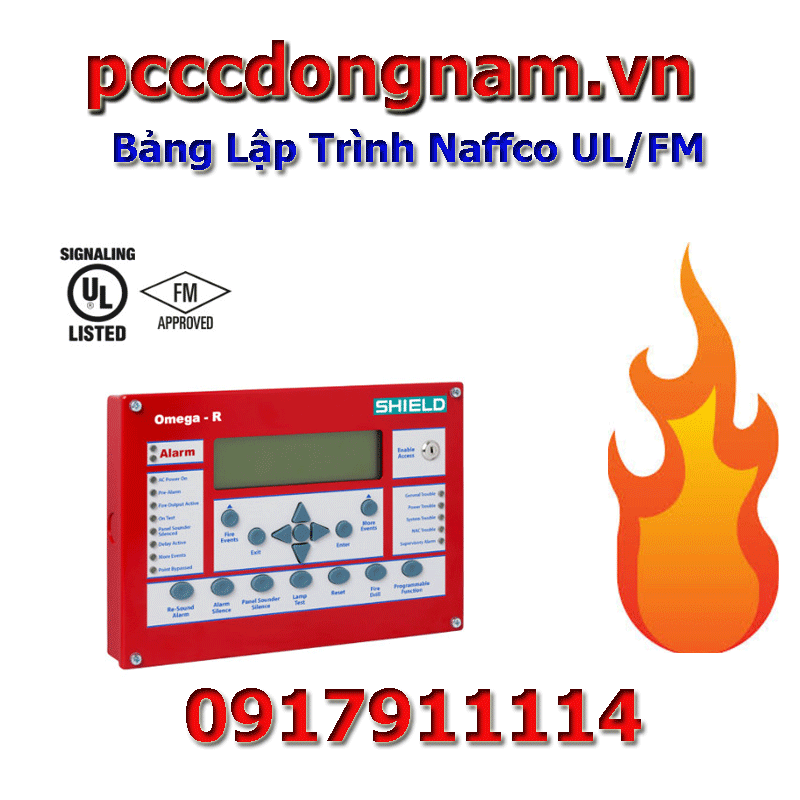

- Specifications Naffco UL FM Programming Boards Designed and manufactured to the highest standards in a quality controlled environment, the SHIELD Omega-R fire alarm reporter offers a simple and convenient method to extend the controls and indications of the SHIELD Omega fire alarm control panel to other locations. Large LCD display, graphic and high-brightness LED double the indications on the SHIELD Omega fire alarm control panel at up to 15 additional locations via a simple two-wire serial data connection
- SHIELD Omega-R is powered by 24V DC (possibly via an additional 2 leads the control panel or a supply listed on the local DC DC listing).
- The SHIELD Omega-R is housed in a small housing similar in appearance to the SHIELD Omega panel and is ideal for installations where a large panel would be adversely decorated as an entrance hall.
- Up to 15 Omega-R Editor SHIELDs can be connected to each control panel on the Omega network, creating the ideal Omega-R where multiple points of indication and/or control such as nurse stations or single store location.
Naffco UL FM Programming Boards Specification
- Available in red
- Up to 15 accessories can be connected to each SHIELD Omega fire control panel
- Large liquid crystal display (240x64 pixels)
- High brightness LED indication
- Sound inside
- Copy all dashboard controls
- Simple two-wire serial connection
- Small, stylish enclosure
- Detachable electronics for easy installation
- 24 V power supply
- Low power consumption
- Multiple language options
- Connection is monitored by the fire control panel SHIELD Omega
Thiết bị báo cháy Naffco....TẠI ĐÂY
