N3060 Nohmi addressable fire alarm system monitoring software
SMP is software installed in a personal computer By connecting to a FACP network through a system interface unit (SIU), SMP provides the system with the ability to monitor FACPs on the network, display currently occurring events and system controls.
1. Features N3060 Nohmi addressable fire alarm system monitoring software
• Max. 195,840 configurable addresses per SMP
• Max. 64 nodes available on the network
• Remote monitoring of networked systems via VPN
• Max. 1,000,000 symbols available per SMP
• DXF & BMP data applied to floor plan
• FACP-like group function
• Current event list
• Event Logs for up to 50,000 events per SMP
• Analog Value Trend Indicator
• Sensor monitoring
• 4 system control switches
• Designed for Microsoft Windows XP, Vista, 7, 8 and 10
2. Features in operating mode N3060 Nohmi addressable fire alarm system monitoring software
• Event Log: An SMP can store up to 50,000 events in its event log. Event log data can be saved as a file
• Trend data display: Trend data of pre-registered similar newspapers can be displayed as a graph
• Sensor monitoring: Analog detector current (smoke density or temperature) can be displayed.
• Zoom: Floor plans can be zoomed with the mouse wheel
• Security: Dedicated security key is required for SMP operation
• Sound: Selectable wave or beep
• Maintenance report: The current status of the analog detector can be displayed.
• Print: Various information can be printed.
3. SMP . Specifications N3060 Nohmi addressable fire alarm system monitoring software
| No | Item | Specifications |
| 1 | Dissolution |
1024 x 768 1280 x 1024 1920 x 1080 1920 x 1200 |
| 2 | Maximum number of addresses on SMP | 195,840 address |
| 3 | Maximum number of screens per SMP | 1,000 screen |
| 4 | Maximum number of characters registered on SMP | 193 character |
| 5 | Configurable maximum number of characters per screen | 1,000 ký tự |
| 6 | Event log capacity | 50,000 Event |
| 7 | Maximum number of nodes on the network | 64 |
4. Specifications for computer to install software of N3060 Nohmi addressable fire alarm system monitoring software
| No | Item | Specifications |
| 1 | Computer hardware |
・Processor: 200MHz or higher ・Hard Disk Space : More than 2 GB ・Ram Memory: More than 128MB ・Geooptical drive : DVD-ROM ・Audio device: Sound card ・Ports: COM and USB ・Audio Input : Speaker |
| 2 | Operating system | Microsoft Windows XP, Vista, 7, 8 and 10 |
| 3 | Graphics card |
XGA:1024 x 768, high color (16bit) SXGA:1280 x 1024, high color (16bit) Full HD:1920 x 1080, high color (16bit) WUXGA:1920 x 1200, high color (16bit) |

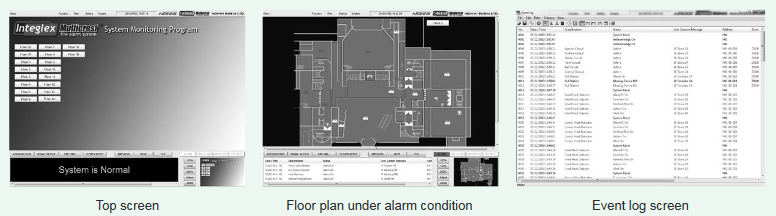

5. Screen Information Display N3060 Nohmi addressable fire alarm system monitoring software
.png "Phầm mềm giám sát hệ thống báo cháy địa chỉ N3060, Nohmi CNI016N (SMP)")

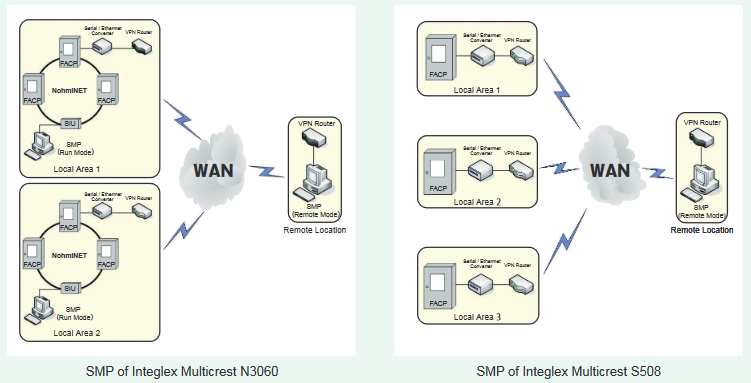

6. System Configuration
.png "Phầm mềm giám sát hệ thống báo cháy địa chỉ N3060, Nohmi CNI016N (SMP)")
