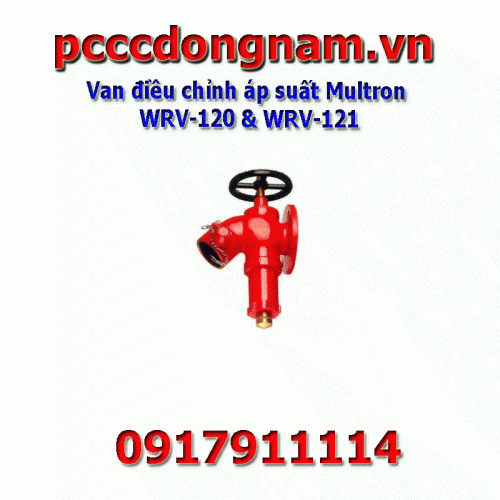

Multron pressure regulator valve WRV-120 and WRV-121

Manufacture: Multron
Product code: WRV-120 & WRV-121

WRV-120 & WRV-121 All kinds of water valves are manufactured according to  Strict quality management system according to ISO 9001: 2008  Genuine imported Multron Singapore Price: 0917.911.114

Zalo

Consulting hotline: 0944934114
Product information

Van điều chỉnh áp suất Multron WRV-120 & WRV-121

- Suitable for inlet pressure up to 20 bar

- Outlet static pressure drop can be set 5 to 8 bar

- Constant outlet pressure with inlet pressure range 7 to 20 bar

Test pressure                              : 30 bar

Flow                                   : lên tới 900l/phút

Input                                   : Mặt bích hoặc ren vít BSP

Output                                      : Female Instantaneous to BS 336

Body                               :  Copper alloy to BS 1400

Crank                                  : Gray cast iron comes BS 1452

Outlet Blank Cap                     : Plastic

Specifications

Model Input type/size Weight total
WRV-121 Male BSP Thread, 65 mm 9.0 kg
WRV-120 Series Flange Type
WRV-120 -65TE BS10 Table E Flange, 65mm 11.5kg
WRV-120 -65ANSI ANSI 150 FF, 65mm 11.5kg
WRV-120 -65PN16 BS 4504 PN16 Flange, 65mm 11.5kg
