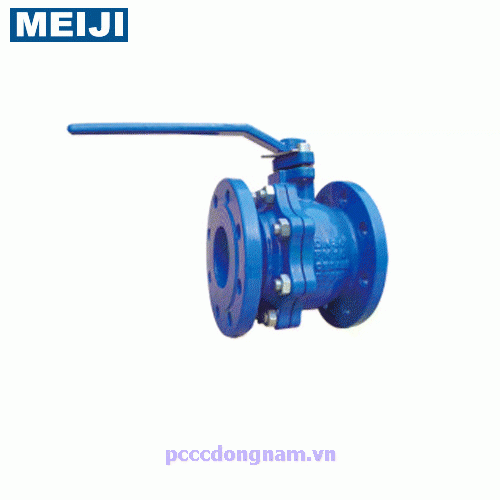

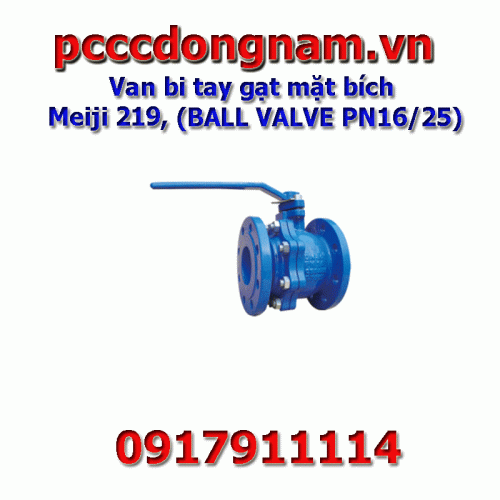

Meiji Flange Hand Ball Valve 219, (BALL VALVE PN16/25)
Manufacture:
meiji
Product code:
Valve 219, (BALL VALVE PN16/25)
Meiji 219 flange handwheel ball valve (BALL VALVE PN16/25) flange connection type, lever genuine imported Meiji Singapore nationwide warranty, free delivery within radius 5km Call center for quotation: 0917.911.114
Product information
COMPLY WITH MSS SP – 72 FACE -TO - FACE DIMENSION CONFORM TO BS EN 558-1 SERIES 14 (DIN 3202 F4) FOR DN 50-100 BS EN 558-1 SERIES 15 (DIN 3202 F4) FOR DN125-300 FULL BORE. PTFE SEAT FLANGED TO BS4504 PN16/25, JIS10/16K, ANSI 150
- Structure: stainless steel 304, 420
- Diameter: DN 50 - 300 mm
- Working pressure: 16/25 bar
- Test pressure: Shell: 24/37.5 bar, Seat: 17/26 Bar
- Working temperature: -10°C ~ 120°C
- Valve type: lever ball
