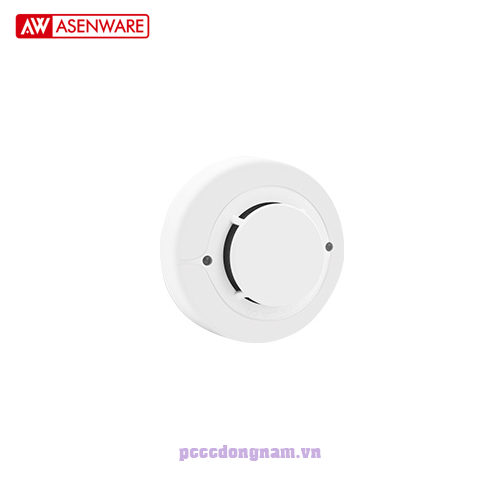

LPCB EN54 approve conventional smoke detector AW-CSD381

Manufacture: INGESCO
Product code: AW-CSD3811

AW-CSD381 is conventional photo-electronic smoke detector uses a state of-the-art optical sensing chamber. This detector is designed to provide open area protection and to be used with most convention.

Zalo

Consulting hotline: 0944934114
Product information

LPCB EN54 approve conventional smoke detector AW-CSD381is conventional photo-electronic smoke detector uses a state of-the-art optical sensing chamber. This detector is designed to provide open area protection and to be used with most conventional fire alarm panel.

The conventional rate of rise of rise heat detector uses thermal component to detect the temperature changing in the environment. It can enable fire alam when the temperature difference achieved the setting rate of rise temperature value reach the setting fixed ualue. It has a stable and reliable working performance.

Two LEDs on each detector provide local 360° visible alarm indication. They flash every six seconds indicating that power is applied and the detector is working properly. The LEDs latch on in alarm. LEDs will be off when a trouble condition exists indicating that the detector sensitivity is outside the listed limit. The alarm can be reset only by a momentary power interruption.

The detector that initiated the alarm condition will have its red LED and relays latched until reset by panel.

LPCB EN54 approve conventional smoke detector AW-CSD381

LPCB EN54 approve conventional smoke detector AW-CSD381

Feature LPCB EN54 approve conventional smoke detector AW-CSD381

LPCB EN54 approve conventional smoke detector AW-CSD381

Technical LPCB EN54 approve conventional smoke detector AW-CSD381

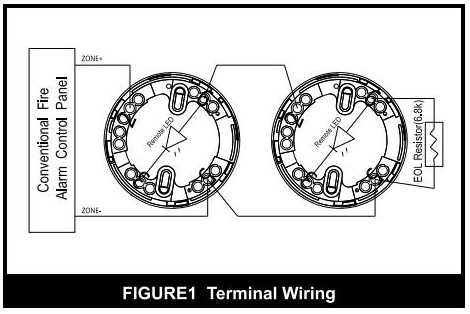

Terminal 6: IN+(Zone Input+)

Terminal 5: IN-(Zone Input-)

Terminal 2: Out+(Zone Output+)

Terminal 5: Out-(Zone Output-)

Terminal 6: Remote Indicator+

LPCB EN54 approve conventional smoke detector AW-CSD381

Terminal 3: Remote Indicator-

Please see also AV lice press equipment HERE

Or all ASENWARE fire alarm equipment
