LPCB Addressable Fire Alarm Heat Detector AW-D302

Manufacture: INGESCO
Product code: AW-D302

AW-D302 Addressable Heat Detector (Detector hereunder) is a mated product of the AW-FP300 fire alarm control panel. It uses a two-bus work mode. With an internal microprocessor, it supports electronic..

Zalo

Consulting hotline: 0944934114
Product information

Product overview LPCB Addressable Fire Alarm Heat Detector AW-D302

AW-D302 Addressable Heat Detector (Detector hereunder) is a mated product of the AW-FP300 fire alarm control panel. It uses a two-bus work mode. With an internal microprocessor, it supports electronic coding. The detector realizes real-time acquisition of the in situ temperature data and sends back the data to a fire alarm control panel. It can also receive and execute the control commands given by a fire alarm control panel. When in a routing inspection, the detector indicator will blink. When there is a fire in the monitored area and the temperature has reached the alarm threshold, the fire alarm control panel will confirm a fire alarm according to the received message sent the detector, and the detector indicator will light at the same time to indicate a fire alarm.

The detector is suitable for such industrial and civil buildings that have a great deal of heat when fire takes place, such as kitchens, boiler rooms, generator rooms, drying workshops and smoking rooms and is not suitable for places with a great deal of smoke but little heat.

LPCB Addressable Fire Alarm Heat Detector AW-D302

LPCB Addressable Fire Alarm Heat Detector AW-D302

Product features LPCB Addressable Fire Alarm Heat Detector AW-D302

Addressable Fire Alarm Heat Detector Features:

1) It can realize electronic coding and rewrite the address via coder in situ.

2) Within a single-chip microcomputer, it can realize real-time data acquisition and processing, realize a curve tracing for the field situation.

3) It has a temperature compensation function and a sensor fault detection function (fault reporting to fire alarm control panel).

4) Non-polarity, two-bus connection that ensures convenient installation and maintenance.

5)Designed with an upper cover and a lower cover and installed on an independent base, it can be installed, debugged and maintained conveniently.

6)Built-in remote indicator output terminal, drive remote indicator lit when fire alarm

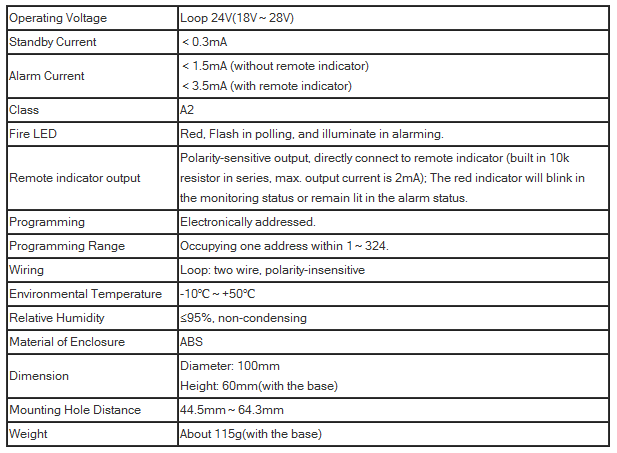

Technical parameters LPCB Addressable Fire Alarm Heat Detector AW-D302

LPCB Addressable Fire Alarm Heat Detector AW-D302

Please see also AV lice press equipment HERE

Or all ASENWARE fire alarm equipment
