LIVA LAP-BX 125 Active Lightning Rod
PRODUCT INFORMATION AND SPECIFICATIONS: LIVA BX-125 (LIVA LAP-BX 125 Active Lightning Rod). - SKU: LAP-BX 125 - The leading beam emission time: ΔT = 40 μs.
Descriptions LIVA LAP-BX 125 Active Lightning Rod
- Radius of protection according to NFC 17-102: Rp = 84m at h = 5m height, level 4 protection. - Technology: Early Lightning Rods Working with Early Streamer Emission (ESE).
- Active lightning: Tested and certified at 115kA lightning current.
- Material: Lightning rod is made of stainless steel. - Packaging dimensions: 17cm (L) x 17cm (W) x 80cm (H). - Weight: 4.2kg. - Installation: teeth coupling in non-60, 50mm2 cable clamp bowl, M8 bolts.
- Environmental temperature: -40 ° C to + 120 ° C. Warranty period: - Warranty 12 months.
- Origin: Liva Group Electrics Electronics Construction Co.Ltd - Turkey. Application: - Lightning protection design for construction works, production workshops, houses, electricity systems, telecommunications equipment, oil and gas ports, parks and many other projects. Standard and Product Certification: - NFC 17-102 (Appendix C), IEC61083-1, IEC 60060-1, TS EN50164-1, TS 3033 EN 60529. - Certification of CE, GOST, ISO 9001: 2008, ISO 14001: 2004 ...
TECHNICAL SPECICIFICATIONS: LIVA LAP-BX 125 Active Lightning Rod
- Count the number of lightning hits with the number of counting times: 000000 - 999999
- Minimum lightning current: 1kA (8 / 20mS)
- Maximum lightning: 100kA 8/120 Wawe Top 100m
- Dimensions: 120 x 95 x 50mm (max 200mm)
- Brand: LIVA
- Model: LSC LX01
- Origin: TURKEY - Turkey

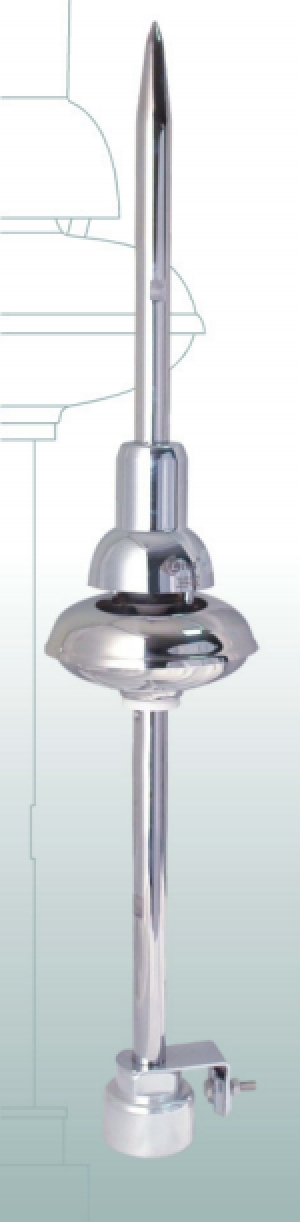

PRODUCT IMAGE: LIVA LAP-BX 125 Active Lightning Rod
