Description of the Kentec Sigma A-CP . Conventional Fire Control Panel
The Sigma A-CP is a range of conventional fire control panels with an optional integrated communications unit. With two, four or eight initiating circuits, all boards can be extensively configured through the somple front panel operator programming method. The cost-effective small battery allows the board to be mounted in a separate box available in red or gray. Simple programming method with only 3 front panel buttons allows setting and viewing of an extensive list of configuration options. Single-panel construction allows easy removal of all electronic components by removing just two screws, and offers a wide range of cable entry types simplifying installation. - 4 amp announcer power supplies and built-in selectable sync protocols provide extensive control and power for many applianaces standard announcements. The integrated RS485 communication bus provides the facility to connect 4 wiring accessories or an auxiliary relay board to provide additional control and control options throughout the facility. Optional DACT allows dual stream reporting to central stations and provides a 500 event history buffer.
-2.gif "Bảng Điều Khiển Hoả lực thông thường Kentec Sigma A-CP (chuẩn UL)")
Kentec Sigma A-CP Conventional Fire Control Panel Features
- Two, four or eight initialization circuits
- Individually configurable initiating circuits such as Fire,
- Water Flow or Monitoring
- Two selectable 2A message device circuits
- Selectable NAC sync protocols Power Supply
- 6.5A Zone-selectable alarm verification
- Rated auxiliary power can be reset at 0.3A
- Power configuration A can power off in fire conditions
- Fire, fault and monitoring relays
- Single person walking test function
- DACT . option
- Advanced configuration options
- 72 hours standby with 7Ah battery
- UL864 listed compact enclosure

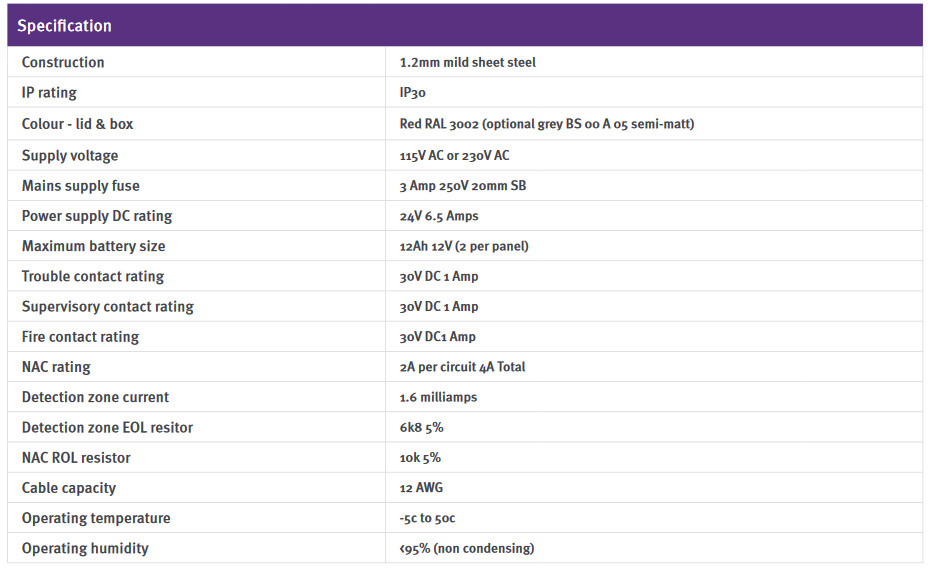

Technical Specifications Kentec Sigma A-CP . Conventional Fire Control Panel

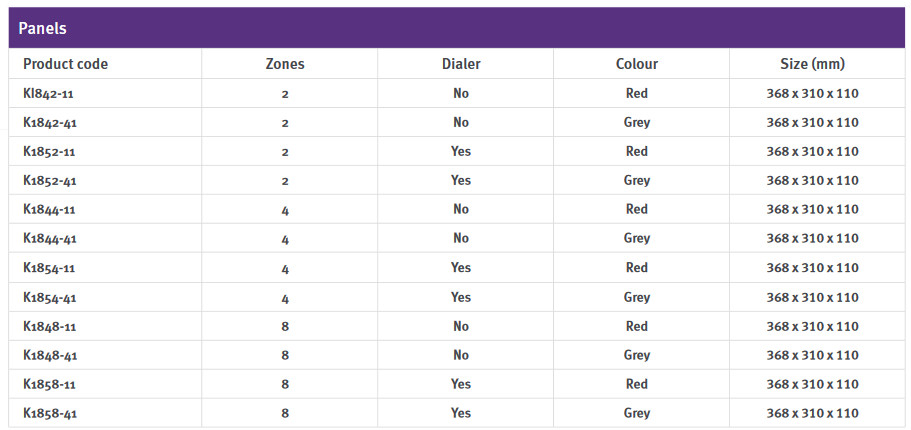

Dimensions of Kentec Sigma A-CP Conventional Fire Control Panel Models
