Hydraulically Actuated Deluge Valve MODEL 68 DE HM
Hydraulically controlled deluge/pre-action valve, actuated by the pipeline pressure. The valve is closed in its normal, set position and opens when the hydraulic pressure drops in a pressurized pilot line, limited to 7m above the valve (for higher pilot lines, see DEHRV model sheet). An emergency manual release valve is fitted as standard.
.png "Hydraulically Actuated Deluge Valve MODEL 68 DE HM")
FEATURES & BENEFITS
High pressure (PN25/375psi), high flow deluge systems
Automatic or local manual emergency actuation
Hazardous, flammable & explosion classified area fire suppression
Superior design featuring exceptionally low pressure losses at high flow rates
Low lifelong maintenance costs due to straightforward design
Applicable for fresh or brackish water, seawater & foam
Out of box fully assembled & tested valves
Factory trimmed for vertical & horizontal installations without modification
Extensive valve & trim materials selection and corrosion protection coating
CERTIFICATION & COMPLIANCE
• ANSI FCI 70-2 Class VI seat leakage class
• UL listed under VLFT category
• Fire tested to EN ISO 6182-5:2006 (2”- 6” only)
• Lloyd’s & ABS approvals
TYPICAL APPLICATIONS
Automatic or Manual Actuated Fire Suppression Systems
Petrochemical, Oil & Gas Installations
Tunnels
Power Generation, Transformer & Transmission Plants
Flammable Storage
Hangars & Airport Terminals
Onshore / Offshore
Mining
OPERATION
The basic control valve [1] used in this deluge system is a direct sealing elastomeric diaphragm, hydraulically operated control valve engineered specifically for fire protection systems.

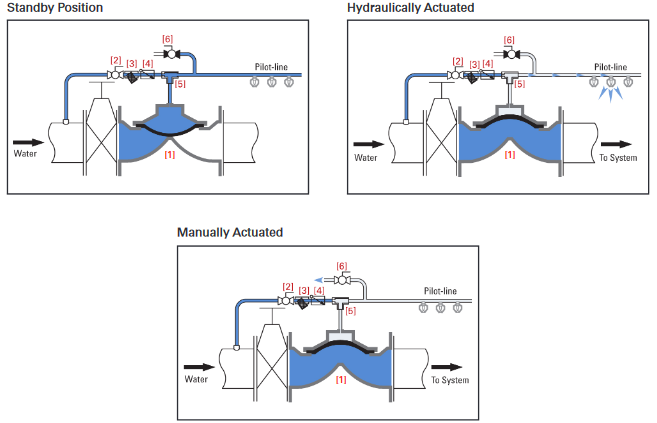

In the standby position, the deluge valve is held closed by the upstream water pressure, trapped in the valve’s control chamber. The water pressure enters the control chamber through the priming line ball valve [2], a Y-Type strainer [3], a check valve [4] and a T-restrictor [5].
Under fire conditions, one (or more) of the automatic sprinklers on the wet pilot line burst. Water is drained the deluge valve’s control chamber through the burst sprinklers. The deluge valve opens instantly and allows water to flow the pipeline and through the open sprinklers over the protected area.
Manual emergency actuation is enabled by opening the emergency manual activation valve [6]. The deluge valve opens instantly and allows water to flow the pipeline and through the open sprinklers over the protected area.
.png "Hydraulically Actuated Deluge Valve MODEL 68 DE HM")

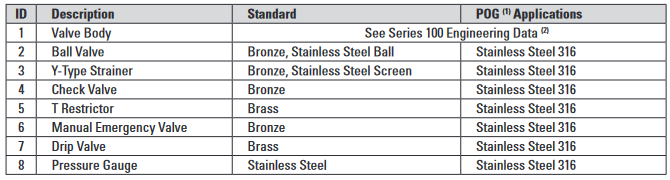

TYPICAL MATERIALS
.png "Hydraulically Actuated Deluge Valve MODEL 68 DE HM")
.png "Hydraulically Actuated Deluge Valve MODEL 68 DE HM")

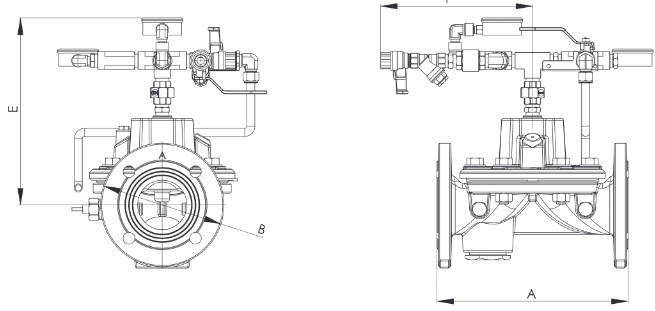

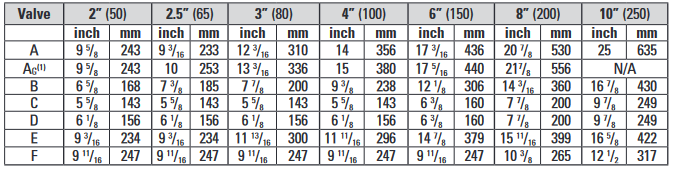

GENERAL ARRANGEMENT & DIMENSIONS
.png "Hydraulically Actuated Deluge Valve MODEL 68 DE HM")
.png "Hydraulically Actuated Deluge Valve MODEL 68 DE HM")
.png "Hydraulically Actuated Deluge Valve MODEL 68 DE HM")
