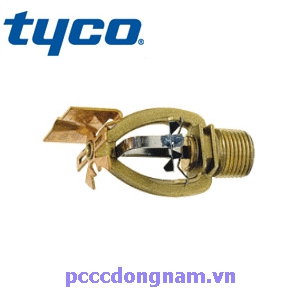

Horizontal Tyco Sprinkler TY4322
Tyco Horizontal Sprinkler Head TY4322...Genuine Distributor of tyco, UK, Spray flow coefficient K 8.0, 12 month warranty, Contact Southeast Company for a quote Viking, Tyco...
Tyco Horizontal Sprinkler Head TY4322 belongs to the CHEC wide-coverage sprinkler range of the quick response type with a spray flow rate of K=8.0. They are the best choice for buildings that require high aesthetics such as hotels, office buildings, churches, restaurants and hospitals. In addition, TY4332 is also used for automatic sprinkler fire extinguishing systems according to installation standard NFPA 13.
Specifications Horizontal Tycp Sprinkler Head TY4322
- Meets standards: UL, C-UL and NYC
- Maximum working pressure: 175 psi (12.1 bar).
- Injection coefficient: K=8.0 GPM/psi½ (115.2 LPM/bar½
- Nozzle size: 3/4 inch NPT (DN20).
- Size of glass tube: 3mm Horizontal adjustment distance: 1/2 inch (12.7 mm).
- Activation temperature:
+ 155°F (68°C) for use with a cover with an activation temperature of 139°F (59°C)
. - The maximum coverage area is up to 23.7 m².
You will receive a quote from us as soon as possible..
