Horizontal Sprinkler quick response
Sidewall sprinkler (Quick response) is also known as a quick response horizontal sprinkler for fire protection systems in building aisles. small rooms... are manufactured according to UL and FM standards, imported genuine. Dong Nam Company imports & distributes quality goods, genuine prices, please contact us at 0917911114 so that we can answer and help you.
The horizontal sprinkler (quick response) is used at the end of the road, the side of the wall, the connection, the small corridor or the small room used for the fire protection system.
TPMC offers horizontal sprinkler systems in UL listed/FM approved.

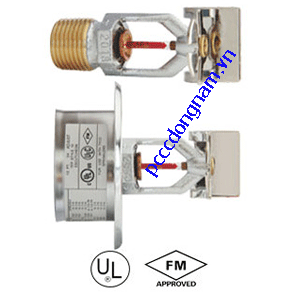

Horizontal (quick response) sprinkler heads are designed with a 3 mm glass bulb mounted along a wall or under a beam, in both horizontal and vertical types. It has a shape deflector in half, so water comes out the shot hole on one side.
.gif "Đầu phun Sprinkler quay ngang (phản ứng nhanh)")
Detailed technical description of horizontal sprinkler nozzles (quick response)
Certifications: UL Listed / FM Approved
Standard: ANSI/UL 199
Response: Standard with 3 mm . glass bulb
Ecutcheon: Concave Ecutcheon
Subject: NPT / BSPT
W. Pressure: 175 psi (1.21 MPa)
Finish: Raw brass / chrome plated / white

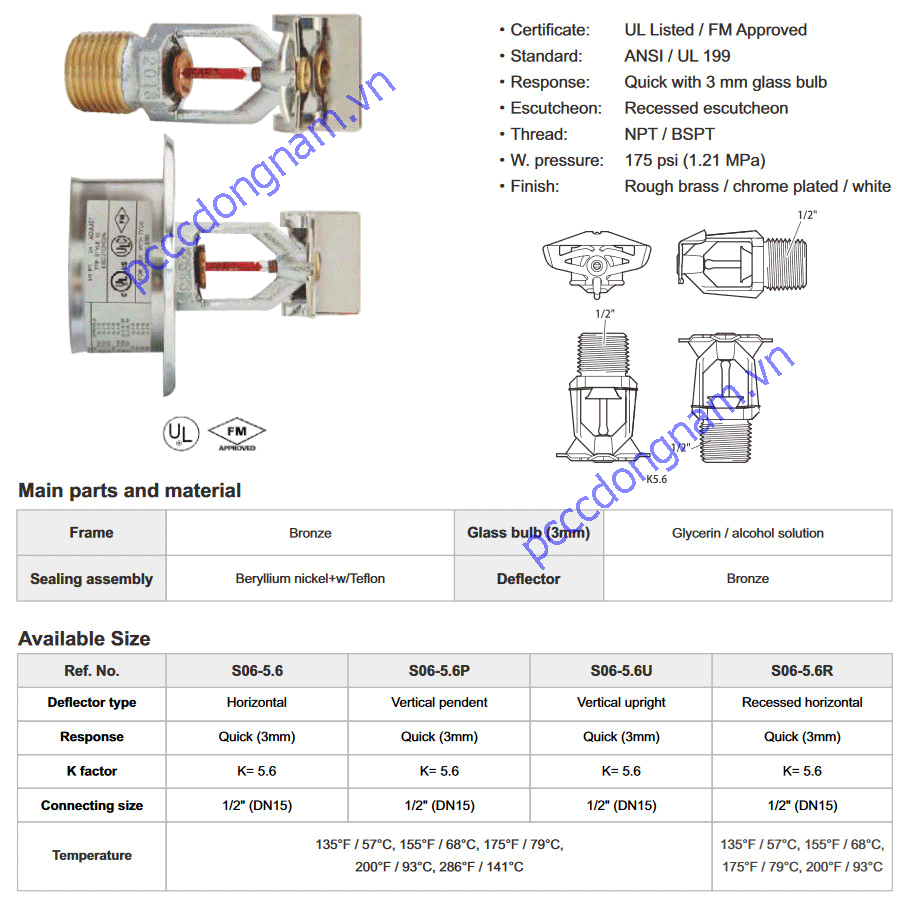

Catalog of horizontal sprinkler heads (quick response)
1.gif "Đầu phun Sprinkler quay ngang (phản ứng nhanh)")
You will receive a quote from us as soon as possible..
