Horizontal Sprinkler extended direction

Manufacture: TPMCSTEEL
Product code: Horizontal Sprinkler extended

Sidewall sprinkler (Horizontal & extended coverage) also known as horizontal sprinkler head (widening direction) manufactured by TPMC meets UL and FM standards and meets fire protection standards. For more information, please contact us via hotline 0917911114

Zalo

Consulting hotline: 0944934114
Product information

Horizontal sprinkler nozzles (expanding direction) are used at the end of the road, side of the wall, connecting road, small corridor or small room used for fire protection system.

TPMC offers horizontal sprinkler systems in UL listed/FM approved.

Horizontal (extended) sprinkler heads are designed with a 3 mm glass bulb mounted along a wall or under a beam, in both horizontal and vertical types. It has a shape deflector in half, so water comes out the shot hole on one side.

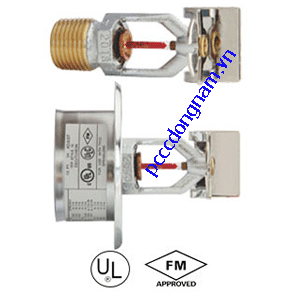

Đầu phun Sprinkler hướng ngang (hướng mở rộng)

Technical details of horizontal sprinkler nozzles (expanded direction)

Certifications: UL Listed / FM Approved

Standard: ANSI/UL 199

Response: Standard with 3 mm . glass bulb

Ecutcheon: Concave Ecutcheon

Subject: NPT / BSPT

W. Pressure: 175 psi (1.21 MPa)

Finish: Raw brass / chrome plated / white

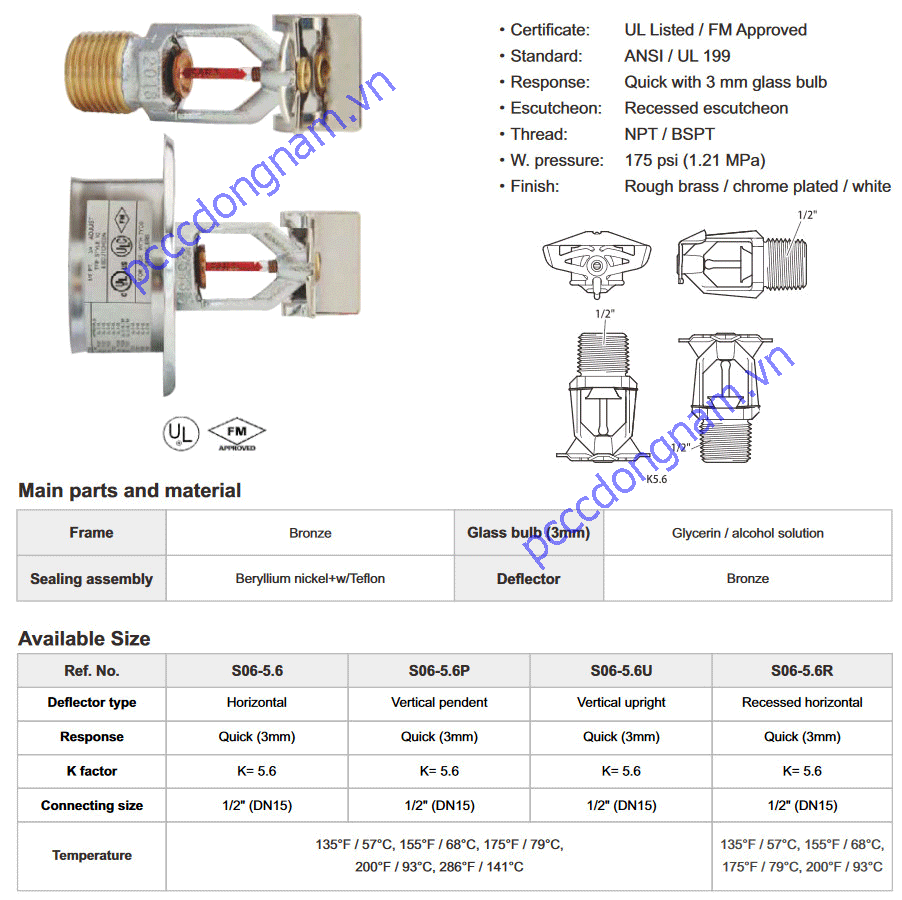

Catalog of sprinkler heads in horizontal direction (expanded direction)

Đầu phun Sprinkler hướng ngang (hướng mở rộng)
