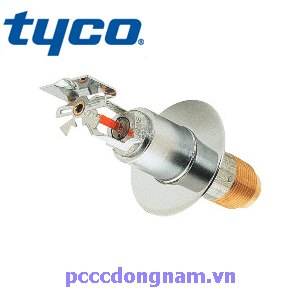

Horizontal rotation Sprinkler TYCO TY3338
CO2 Fire Extinguisher 4kg Tyco Sprinkler Route Horizontal Horizontal Spray TY3338 Standard reaction type Covered width Spray flow K = 5.6 Dry spray DS-1 standard response, C- UL and NYC Contacts 0917911114
Horizontal rotation Sprinkler TYCO TY3338 in DS-1 dry spray line, with wide coverage, fast response to spray volume K = 5.6. They are used where there are nozzles or partial pipes inserting the injectors located in a freezing temperature.
Specifications Horizontal rotation Sprinkler TYCO TY3338
- Meeting standards: UL, C-UL and NYC.
- Maximum working pressure: 175 psi (12.1 bar).
- Spray coefficient: K = 5.6 GPM / Psi½ (80.6 LPM / BART).
- Size of nozzle: 1 inch NPT (DN25).
- Glass tube size: 3mm
- Activation temperature:
+ 135 ° F (57 ° C) Orange glass tube
+ 155 ° F (68 ° C) Red glass tube
- Material grade plating: brass, cr.
