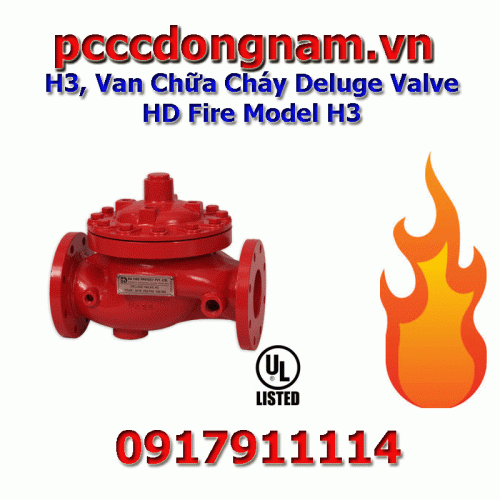

H3, Deluge Valve HD Fire Model H3, Early Activation

Manufacture: HD Fire
Product code: Model H3

H3, Deluge Valve HD Fire H3 is a UL Standard Flood Release Valve manufactured by Ductile Steel 100% Genuine Quantity supply  Genuine warranty commitment  Please contact 0917 911 114 for advice 24/7 free consultation

Zalo

Consulting hotline: 0944934114
Product information

Deluge valve model H3 Rapid application of water in spray, pre-treatment and foam systems Construction of ductile iron A5 A536 Size: 50, 80, 100, 150 & 200 mm (2", 3", 4", 6" & 8") Maximum service pressure 17.5 bar (250 PSI) Horizontal or vertical mounting Flange connection size with ANSI B 16.5 No latch, no piston, no hinge Simple but sure Diaphragm works with positive dropper sealing positive rubber Auto-reset type Service without removing the line Easily cut for manual actuation, remote solenoid valve and with wet or dry pilot Inside and outside surface coated with high-grade epoxy paint for protection Standard : UL

Xem thêm
Rút gọn
