Glass Sprinkler Head TKSGU-25 GLASS UNION
Genuine YoungJin-Korea TKSGU-25 Glass Glass Sprinkler Head (GLASS UNION)... using effective fire extinguishing
✅ The latest model of today's nozzles
✅ 12 months warranty
✅ Delivery to your place
✅ Contact 0917911114
Features Glass Sprinkler Head TKSGU-25 (GLASS UNION)
The Vision Glass is a convenient, easy-to-use fusion product that connects the hose to the end of the sprinkler and Orifce viewfinder. Therefore, it can be set up anywhere in the installation part of the pipeline.
+ Orifce (Ø11.2), Viewfinder, Non-Link Type (PT 1")
+ The user can see the operation of the sprinkler pipe.
+ Save glass nozzles by interlacing with connection holes.
+ Convenient maintenance and installation allied with the detaching and connecting function of the glasses. Sized to fit PT1" with piping standard for sprinkler end end.
+ Cost savings for auxiliary components.
Installation Instructions for Glass Sprinkler Head TKSGU-25 (GLASS UNION)
Installation Instructions for Glass Sprinkler Head TKSGU-25 (GLASS UNION)
1. Visually inspect the faucet for any signs of physical damage.
2. Check the 0-Ring and Insulation Ring to see if there are any signs of physical damage.
3. Connect the Reducer to the Nut using a wrench.

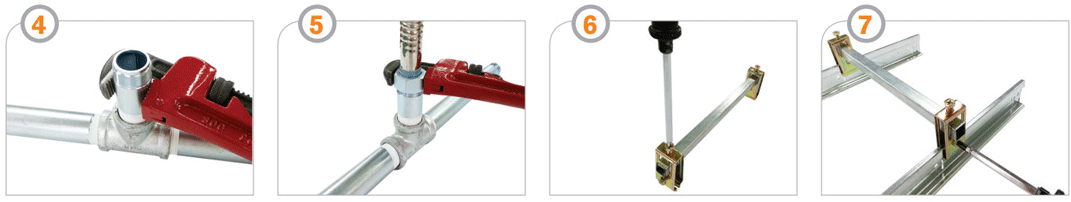

Button and reducer connect torque: 500kgf/cm 4. Apply on the tape on the nipple tip.
Use a pipe wrench to connect the inlet nipple to the branch line.
5. After checking Ring 0 and Insulating Ring for any signs of physical damage, connect the sprinkler sprink that may appear to be on the outside nipple.
6. Set each bracket-S to a square using the driver as shown in the photo
7. Set the distance 600mm to 1200mm.

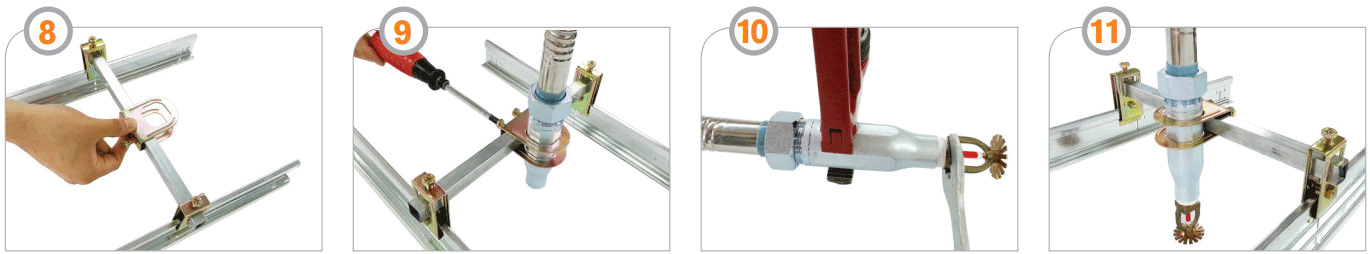

8. Connect the square bar to the T-bar ceiling grid as shown in figure 2 and tighten the bolts on the Bracket-S to secure on the grid.
Bu lông khung-S kết nối mô-men xoắn: 45kgf / cm
9. Place Bracket-L in the center of the square bar.
10. Install the reducer the detachable sprinkler hose and tighten it by tightening the two bolts on the Bracket-L
11. Apply on the tape on the sprinkler inlet and connect to the reducer outer knob.
12. Check that all parts are securely fastened.
