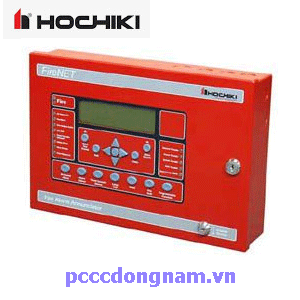

FireNET FN-LCD-N LCD sub-display unit ,Hochiki fire alarm device
FireNET FN-LCD-N LCD sub-display unit | Hochiki fire alarm equipment
✅ Hochiki addressable fire alarm device,Hochiki fire alarm center , Hochiki fire alarm center cabinet ,24/7 technical consultation: 0917911114
Basic function : FireNET FN-LCD-N LCD sub-display unit (Hochiki Fire Alarm Device)
・Conforms to UL 864 LCD display 320 characters (8 lines x 40 characters). Led fire alarm indicator, alarm control, trigger output when fire, alarm verification (Pre-Alarm delay alarm), power indicator light, horn off, relay, event check, fault alarm general, power failure, system error, NAC output error.
· 2 RS485 lines connecting the main center.
· Expandable to 64 hubs and sub-display units
· RS-232 line for computer connection.
· 4 relays 1Amp 30VDC for fire alarm, monitoring, fault alarm, AUX.
SPECIFICATIONS
Input DC 24VDC @ 270mA Max. (+ Aux. Power Load) Aux.
Output DC 24VDC @ 500mA
Dimensions 14.5" W x 10" H x 3.3" D
Weight 9.4 lbs Red color
Material ABS/steel enclosure
Display 8 lines x 40 characters LCD (total 320)
Connecting Dual RS485 ports (64 nodes max.) Relay circuit (4) Form C 1amp@30VDC Has PC connection port (RS232), printer connection (RS232), RS485 expansion port
You can refer to products genuine fire alarm equipment...HERE
You will receive a quote from us as soon as possible..
