Fire Protection Basic Valves MODELS 30 30U 30CU
The Series 300 control valves are automatic, hydraulically actuated, diaphragm operated, rigid seal globe pattern control valves. These valves are designed for use in fire protection applications, including deluge, pre-action, pressure control, monitors, hydrants and are suitable for water, foam and seawater systems. The valves consist of three major components: body, cover, and internal trim assembly.
UL Listed Basic Untrimmed Valve Models: 30, 30U, 30CU
Model 30: Up to 375psi working pressure, globe pattern, flanged, grooved & threaded.
Model 30U: Up to 375psi working pressure, globe pattern, flanged, grooved & threaded, with drain port.
Model 30CU: Up to 375psi working pressure, globe pattern, double-chamber, flanged, grooved & threaded, with drain port.
• UL Listed under the following categories:
– “Special Systems Water Control Valves” Deluge (VLFT) – Models 30U & 30CU
– “Fire Pump Pressure Relief Valves” (QXZQ) – Model 30
– “Special System Water Control Valves, Pressure Reducing and Pressure Control” (VLMT) – Models 30 & 30U
• Lloyd’s type approval
• GOST-R
• Manufacture and conformity assessment of pressure equipment & assemblies Directive (97/23/EC / EN1074)
Consult the UL listing guide or contact OCV Fluid Solutions for a complete list of approved applications and valve sizes.

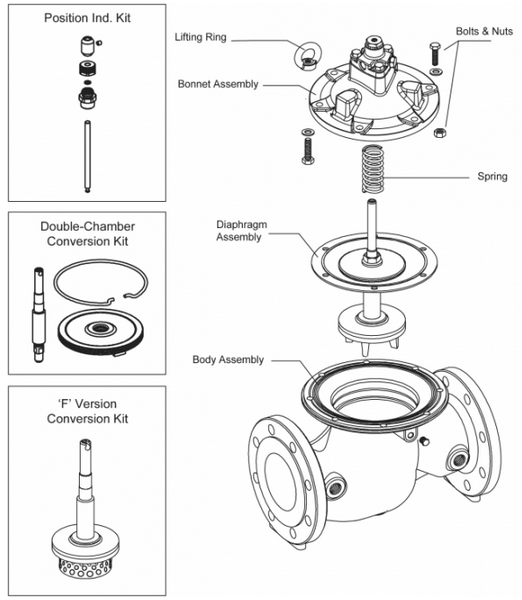

.png "Fire Protection Basic Valves MODELS 30 30U 30CU")
Valve Features
STANDARD
• Listed & approved for use in fire protection systems by various global standards
• Quick opening; Non-slam closing operation
• Drip-tight shut off to ANSI FCI 70-2 VI seat leakage class
• Simple and reliable construction
• Easy installation & maintenance
• High-grade construction materials
• Reliable pressure control
• Low pressure losses at high flow rates
OPTIONAL
• Local or remote reset
• Electric, pneumatic & electro-pneumatic control trims
• Explosion proof solenoids & trim accessories
• Seawater & foam concentrate services

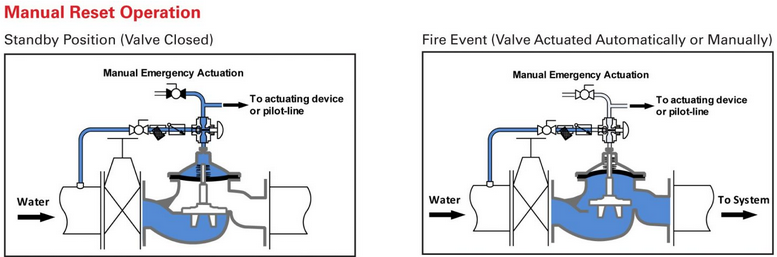

Valve Operation
.png "Fire Protection Basic Valves MODELS 30 30U 30CU")
.png "Fire Protection Basic Valves MODELS 30 30U 30CU")
.png "Fire Protection Basic Valves MODELS 30 30U 30CU")
PRESSURE RATING
Recommended nominal system pressure to flange class for typical materials as:
Ductile Iron ASTM A536
Cast Steel ASTM A216 & ASTM A352 LCB
Stainless Steel ASTM CF8M
NAB ASTM B148 C-95800
• 250psi nominal system pressure for flanges ANSI B16.42 & ANSI B16.50 Class #150 accordingly
• 375psi maximal system pressure for flanges ANSI B16.42 & ANSI B16.50 Class #300 accordingly
Material Specifications
.png "Fire Protection Basic Valves MODELS 30 30U 30CU")
SPECIFICATIONS
Temperature:
Water up to 85°C / 185°F max
Sizes:
Straight Flow: 1.5”- 40” / 40-1000 mm
UL Listed: 2”- 12” / 50-300 mm
Lloyd’s Type Approved: 2”- 24” / 50-600 mm
End Connections:
Flanged: 1.5”- 40”: ISO PN16 and PN25; ANSI B16.42 & B16.5 Class #150 & #300
Additional options available upon request
Grooved: 2” – 8”: ASME/ANSI AWWA 606
Threaded: 1.5” – 2”: BSP or NPT
Body & Cover Material:
Ductile Iron ASTM A536
Cast Steel ASTM A216 & A352 LCB
Stainless Steel ASTM CF8M
NAB ASTM B148 C-95800
Coating Material:
High Built, Fusion Bonded Epoxy
Optional Coating Material:
UV Protection
Polyester
Other coatings conforming to ISO-12944 C4, C5 & C5M
Internal Trim Material:
Stainless Steel
Bronze
Elastomers:
BUNA-N
Viton
EPDM
Control Trim & Accessories:
Brass
Stainless Steel
NAB
Monel
Super Duplex
Optional Components:
Pressure Reducing Feature
Position Indicator & Proximity Switch Assembly
Pressure Switch
Alarm Test Trim
Drain Valve
Explosion Proof
Open/Close Speed Control
Block & Bleed Valves for Pressure Sensing Components
PPCS (Pneumatic Pressure Control System for Pneumatically Actuated Models

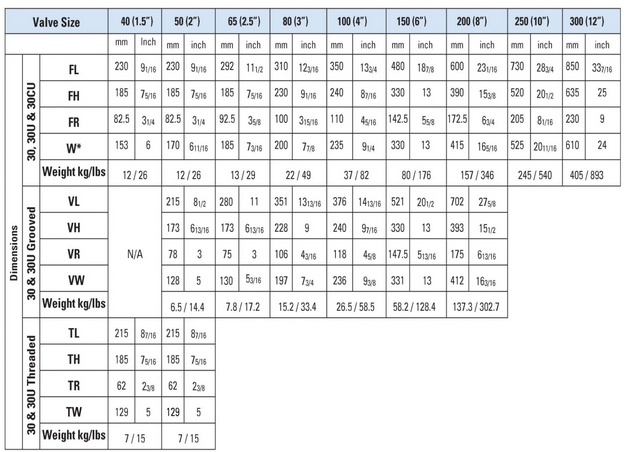

Dimensions
.png "Fire Protection Basic Valves MODELS 30 30U 30CU")
.png "Fire Protection Basic Valves MODELS 30 30U 30CU")
