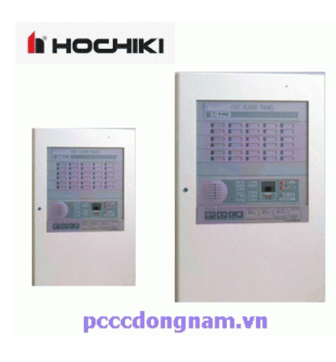

Fire Alarm Center 25 30 35 40 45 50 zone RPQ-ABW
Fire Alarm Center (25/30/35/40/45/50 zone) RPQ-ABW Detailed description: Flexible configuration , Light and compact , Easy to install ,Time Delay function ,Contact 0917911114 for 24/7 consultation
Descriptions Fire Alarm Center 25 30 35 40 45 50 zone RPQ-ABW
Fire Alarm Center (25/30/35/40/45/50 zone) RPQ-ABW Features of Fire Alarm Center (25/30/35/40/45/50 zone) RPQ-ABW
1. Multi-purpose zone configuration - Flexible zone configuration to suit many types of alarms (Only zone 1 is predetermined and is a fire alarm)
2. Light and compact features of the Fire Alarm Center (25/30/35/40/45/50 zone) RPQ-ABW - 550mm(W) X 850mm(H) X 130mm(D), about 25Kg (RPQ40), - 550mm(W) X 1100mm(H) X 160mm(D), approx. 30Kg (RPQ50)
3. Fire Alarm Center (25/30/35/40/45/50 zone) RPQ-ABW easy to install - Plug-in terminal - The space inside the cabinet is large for easy wiring.
- Door opens 180 degrees 4. Time delay function of Fire Alarm Center (25/30/35/40/45/50 zone) RPQ-ABW
- Reduce false alarms and improve the reliability of automatic fire alarm systems. By verifying that the received fire alarm signal is continuously received a predetermined period of time before the fire alarm is activated and false alarms can be ignored.
- Time delay function works: when receiving the first fire alarm signal the detector, after 9s, the system resets the detector in 1s. If receiving the second fire alarm signal within the next 40 seconds, the central cabinet will output a fire alarm signal.
5. Special features of Fire Alarm Center 25 30 35 40 45 50 zone RPQ-ABW
- Lightning protection.
- Easily set the alarm to ring by area.
- Detector test function with 2 reset modes for smoke detectors and heat detectors.
– Displays the voltage of the backup power supply
- Alarm sound in time delay
- Zone . open circuit monitoring
You will receive a quote from us as soon as possible..
