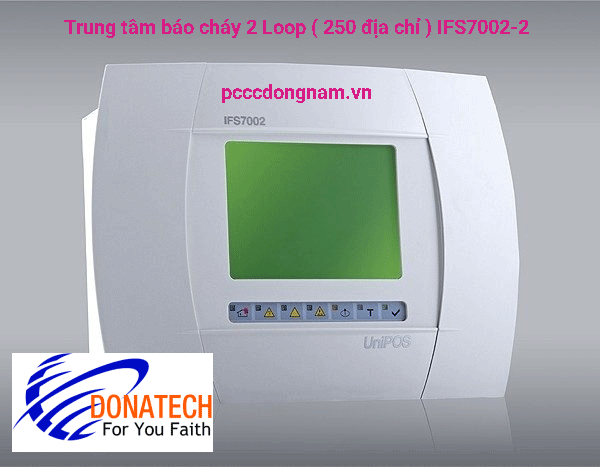

Fire Alarm Center 2 Loop 250 addresses IFS7002-2
2 loop IFS7002 Unipos fire detection fire alarm system Unipos is designed to operate with automatic fire alarm devices that can locate and call points manually. IFS7002 Unipos control devices and input / output devices can be integrated the fire alarm.
FUNCTION :
The control center and all devices in the loops are programmable.
Two-way data exchange between the central control cabinet and equipment.
Detect fault conditions: short circuit or interruption in a loop, fire detector removal,...
Two signal loops (optional branch line) for connecting fire alarms, input/output modules, adapters, fire extinguishers.
Automatically address devices to avoid duplicate addresses LED display for events
Audio integration LCD screen displays text messages
Touch screen control panel
Choice of built-in standard computer keyboard
SPECIFICATIONS:
Number of fire alarm zones: Up to 250
Device address in a loop: 125 . max
Cross-section of signal wire: 0.8-2.5 mm2
Maximum resistance of signal loop: 100Ω
Maximum fire alarm per zone: Up to 60
Response time for active detection signal: 10s
WATTAGE :
Power supply: 220 / 230VAC, 50 / 60Hz
Battery: 2 x 12 VDC, 18Ah
Consumption of supply current : 1A
DISPLAY :
RS 232 or RS 485: 1 MAY:
2+ Dimensions: 480 x 445 x 100 mm
Weight (excluding battery): 7.1 kg
Operating Temperature: Below 5oC to 40oC
Relative humidity: (93 ± 3)% at 40oC
Protection: IP 40
