Fiber Optic Interface Module FIM PCA-2707XA
The PCA-2707XA FIM cluster is an optional component for the FACP system
❌ The PCA-2707XA FIM provides system capability using fiber optic cabling for the system network, the PCA-2707XA FIM is used in the system along with the Equipment. Network Interface (NIU). , the PCA-2707XA FIM contains an element where data from/to other FACPs on the network is converted optical data for transmission. The 5 VDC power required for operation is supplied the NIU to the PCA-2707XA FIM. The PCA-2707XA FIM is equipped with a status indicator (LED). The green LED indicates normal 5 VDC power the NIU when it is turned on. The PCA-2707XA FIM is equipped with jumpers that will be set according to the length of the fiber used (i.e. less than one kilometer or more than one kilometer).
Descriptions Fiber Optic Interface Module FIM PCA-2707XA
• UL 864, 9th edition listed
• Max. 64 nodes are available on the network
• Type 7 NFPA connections apply
• Status LEDs
• Assembling a smaller sized PC
• Easy to install
+++ Part No. PCA-2707XA FIM
Specifications Fiber Optic Interface Module FIM PCA-2707XA
| No | Item | Specifiations |
| 1 | Maximum standby current 5 VDC | 180 mA |
| 2 | Maximum alarm current 5 VDC | 180 mA |
| 3 | Working temperature | 0 to 49˚C (32 to 120 ˚F) |
| 4 | Humidity max | 93% non-condensing |
| 5 | Network connection type | NFPA kiểu 7 |
| 6 |
Maximum number of nodes per network |
64 |
| 7 | Maximum length between FIM . fibers | 2 km (50/125 µm), 1.7 km (62.5/125 µm |
| 8 | Sounder | 6 db |
| 9 | Dimension | 50 mm (1.97")(H) x 70 mm (2.76")(W) x 25 mm (0.98")(D) |
Optical fiber specifications
| No | Item | Specifications |
| 1 | Type of yarn | GI |
| 2 | Structure | Quartz glass |
| 3 | Core Diameter | 50 µm or 62.5 µm |
| 4 | Oops | 125 µm |
| 5 | Bandwidth | 850 nm |

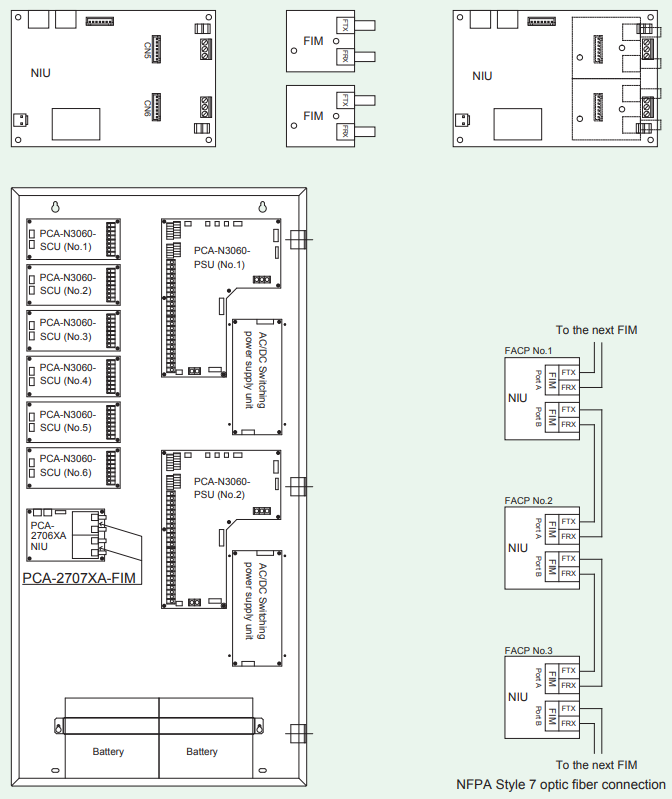

Install
.png "Mô-đun giao diện sợi quang (FIM) PCA-2707XA FIM")
