Electrically Actuated Deluge Valve 115-4DV

Manufacture: INGESCO
Product code: 115-4DV

Electrically controlled deluge valve, actuated by the pipeline pressure. The valve is closed in its normal, set position and opens when a 3-way solenoid valve is energized. It closes drip tight when the solenoid valve is de-energized. An emergency manual release valve is fitted as standard.

Zalo

Consulting hotline: 0944934114
Product information

FEATURES & BENEFITS

Opens quickly when the solenoid valve is activated (specify energize-to-open or energize-to-close)

Manual override to open the valve regardless of solenoid valve position

Visual indicator for indication of valve position

Large supply drain port to drain inlet side piping – globe only

Solenoid operated main valve

No adjustments necessary

Factory tested

Sizes 1.25” (DN32) – 16” (DN400)

Wide range of materials available including those for seawater service

Options available include opening and/or closing speed controls, limit switch assembly and pressure gauge(s)

CERTIFICATION & COMPLIANCE

Electrically Actuated Deluge Valve 115-4DV

• ANSI FCI 70-2 Class VI seat leakage class

• Fire tested to EN ISO 19921

• ABS type approval

TYPICAL APPLICATIONS

Automatic or Manual Actuated Fire Suppression Systems

Petrochemical, Oil & Gas Installations

Tunnels

Power Generation, Transformer & Transmission Plants

Flammable Storage

Hangars & Airport Terminals

Onshore / Offshore

Mining

OPERATION

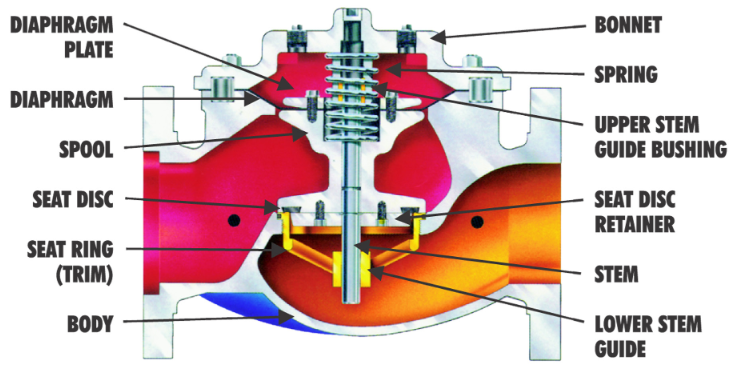

The basic control valve [1] used in this deluge system is a diaphragm actuated globe valve which closes with an elastomer-on-metal seal, hydraulically operated control valve engineered specifically for fire protection systems.

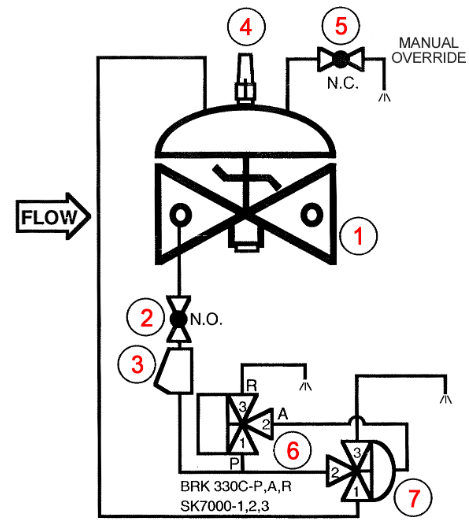

In the standby position, the deluge valve is held closed by the upstream water pressure, trapped in the valve’s control chamber. The water pressure enters the control chamber through the priming line ball valve [2], a Y-type strainer [3], a 3/2-way N.C. solenoid [6] and an auxiliary pilot valve [7].

Under fire conditions, a fire alarm control panel energizes the 3/2-way N.C. solenoid (or de-energizes the coil of a continuously energized ED 100% normally open solenoid for SIL 3-4 rated systems). The pressure in the auxiliary pilot valve increases, causing it to shift position allowing the water to drain the deluge valve’s control chamber. The deluge valve opens instantly and allows water to flow the pipeline and through the open sprinklers over the protected area.

Manual emergency actuation is enabled by opening the emergency manual activation valve [5]. The deluge valve opens instantly and allows water to flow the pipeline and through the open sprinklers over the protected area.

A visual indicator [4] provides indication of the valve’s position at a glance.

Electrically Actuated Deluge Valve 115-4DV

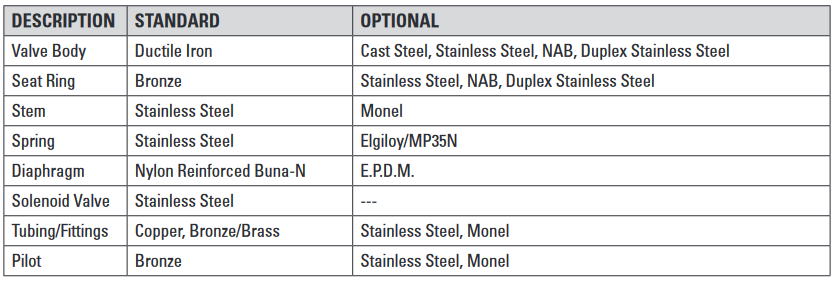

TYPICAL MATERIALS
