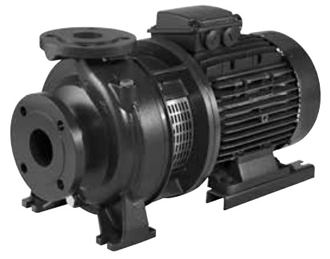

Electric Pump, Fire Pump Ebara 3DS

Manufacture: EBARA
Product code: 3DS

Electric pump, fire pump Ebara 3DS ⭐
✅ Electric pump, centrifugal fire pump ⭐
✅ Monobloc pump with extended motor shaft ⭐ Maximum working pressure: 10 bar , Temperature of liquid : -5°C + 90°C -5°C + 110°C
✅ Contact: 0917.911.114

Zalo

Consulting hotline: 0944934114
Product information

Máy bơm điện, Máy bơm chữa cháy Ebara 3DS

Application

• Clean water and liquid treatment, supply fire protection water

• Water supply

• Pressure

• Laundry and industrial plants

• Water circulation in climate control systems

• Irrigation and agriculture

• Robust construction

• Constructed of stainless steel

• High efficiency while using

SPECIFICATIONS

• Maximum working pressure: 10 bar

• Liquid temperature: -5°C + 90°C -5°C + 110°C (H-HS-HW-HSW version) -5°C + 120°C (E version)

• MEI > 0.4 ENGINE SPECIFICATIONS

• IE3 high energy efficient motor starting 0.75kW

• Self-ventilated 2-pole and 4-pole asynchronous motor

• Insulation class F (B for high temperature)

• Degree of protection IP 55

• Single-phase voltage 230V ± 10% 50Hz, Three-phase voltage 230/400 ± 10% (including up to 4 kW), 50 Hz, Three-phase voltage 400 / 690V ± 10% (5.5 kW and up) up), 50 Hz

MATERIALS

• Cast iron pump body EN-GJL-250-EN 1561

• Working in: - AISI 304 steel for 3D SERIES 32, 40, 50 - AISI 316 microcast steel for 3D SERIES 65

• AISI 304 steel shaft (parts in contact with liquids)

• Mechanical seal in: - Ceramic / Carbon / NBR (standard) - Special edition: see p. 165 for 2 pole 3D SERIES, p. 192 for 4-pole 3D SERIES

Xem thêm
Rút gọn
