Detnov DOTD-230A-B Combined Smoke Heat Detector black
DOTD-230A-B and DOTD-230A-BI Optical thermal detectors for smoke and temperature detection for addressable systems, incorporating verification algorithms and dirt compensation, Status LEDs and outputs for anti-theft system or remote controller, horn , Black. Allows installation without polarity ,Requires Z-200-B or Z-200-BH connector base, CPR certified EN54-5 and EN54-7. Dimensions: 100 x 49 mm.
Featured
o Sleek design, low profile
o Dust compensation
o Anti-dirt and anti-insect net
o Heat function for measuring temperature
o Fixed heat function at 58 C
o Non-polarized 2-wire connection
o Remote pilot output
o Compatible with any Detnov analog console
o CPR certificates EN 54-5, EN 54-7 and EN 54-17
o Directions 1-250 on a detour or DOTD-230A-I with isolators. Connection respecting polarity
Application Detnov's comprehensive range of 200 series detectors enables reliable fire detection thanks to its advanced analytical technology. Depending on the risk to be protected, the sensor topology will have to be chosen of a detector that can choose between: optical, thermal, thermoelectric or a combination of the aforementioned sensors. Detnov fire detectors have been developed to ensure a quick response to fire, meeting the highest quality standards and certifications demanded in the market. Unique reliability in detecting and protecting facilities to reduce false alarms, tailored to the most demanding applications.
Specifications
|
Working voltage: Consumption in standby mode: Consumption in alarm: |
22 to 38VDC <300 μA <11 mA |
| Connector | 2 x 1.5 mm2 braided and shielded connections with Z-200 . base |
| Temperature | -10ºC to 70ºC |
| Humidity | 95% |
| Protections class IP | IP20 |
| Detector (height x diameter) | 42 mm x 100 mm |
| Base (Height x diameter) | 5 mm x 100 mm |
| Structure | ABS (màu đen) |
| Certifications | EN54-5, EN54-7 y EN54-17 |
| Certifications number |
DOTD-230A Nº no: 0370-CPR-2006 DOTD-230A-I Nº no: 0370-CPR-1862 |

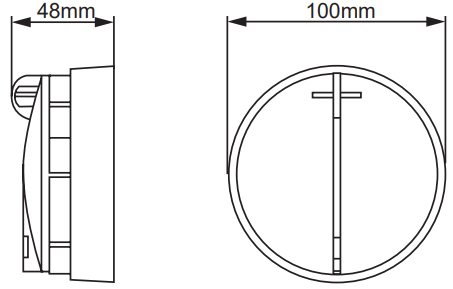

Size
.png "Đầu báo nhiệt kết hợp khói Detnov DOTD-230A-B (màu đen)")
