Detnov DOD-220A-B Radiator Cover black

Manufacture: detnov
Product code: DOD-220A-B

Optical smoke detectors for analog systems
✔️ incorporating verification algorithms and dirt compensation, LED status indicator and output for anti-theft systems or remote controls, whistles. Black , Allows installation without polarization. Requires Z-200-B or Z-200-BH connector base. Certificate of CPR EN54-7. Dimensions: 100mm x 40mm.

Zalo

Consulting hotline: 0944934114
Product information

Featured Detnov DOD-220A-B Radiator Cover black

o Sleek design, low profile

o Dust compensation

o Anti-dirt and anti-insect net

o Non-polarized 2-wire connection

o Remote pilot output

o Compatible with any Detnov analog console

o Certificate of CPR EN 54-7 and EN 54-17

o Directions 1-250 on detour or DOD-220A-I with isolator. Connection respecting polarity

Application Detnov's comprehensive range of 200 series detectors enables reliable fire detection thanks to its advanced analytical technology. Depending on the risk to be protected, the sensor topology will have to be chosen of a detector that can choose between: optical, thermal, thermoelectric or a combination of the aforementioned sensors. Detnov fire detectors have been developed to ensure a quick response to fire, meeting the highest quality standards and certifications demanded in the market. Unique reliability in detecting and protecting facilities to reduce false alarms, tailored to the most demanding applications.

Specifications Detnov DOD-220A-B Radiator Cover black

Working voltage:

Consumption in standby mode:

Consumption in alarm:

22 to 38VDC

<300 μA

<11 mA

Connections 2 x 1.5 mm2 braided and shielded connections with Z-200 . base
temperature  -10ºC to 70ºC
Humidity 95%
Protections class IP40
Detector (height x diameter) 42 mm x 100 mm
Base (height x diameter) 5 mm x 100 mm
Structure ABS màu đen
Certifications EN 54-7 y EN 54-17 (DOD-220A solo EN 54-7)
Certifications number

DOD-220A Nº certificado: 0370-CPR-0881

DOD-220A-I Nº certificado: 0370-CPR-1859

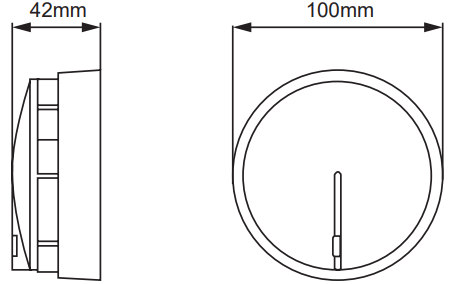

Size of Detnov DOD-220A-B Radiator Cover black

Dau Bao Khoi quang Detnov DOD-220A-B (màu đen)
