DELUGE PRESSURE REDUCING MODEL 68 DE HRV PR-MR

Manufacture: INGESCO
Product code: 68 DE PORV PR

Hydraulically Actuated, Anti-Columning, Pressure Reducing, Manual Reset Deluge Valve Hydraulically actuated, pilot controlled deluge/pre-action valve, actuated by the pipeline pressure. The valve is closed in its normal, set position and opens when the hydraulic pressure drops in a pressurized pilot line, tripping a hydraulic relay. When tripped, the valve regulates to a steady, preset downstream pressure, regardless of upstream pressure or flow rate fluctuations. The valve must be manually reset following automatic actuation. An emergency manual release valve is fitted as standard.

Zalo

Consulting hotline: 0944934114
Product information

FEATURES & BENEFITS

High pressure (PN25/375psi), high flow deluge systems

Automatic or manual emergency actuation

Hazardous, flammable & explosion classified area fire suppression

Superior design featuring exceptionally low pressure losses at high flow rates

Low lifelong maintenance costs due to straightforward design

Applicable for fresh water, seawater & foam

Out of box fully assembled & tested valves

Extensive valve & trim materials selection and corrosion protection coating

Factory trimmed for vertical & horizontal installations without modification

CERTIFICATION & COMPLIANCE

DELUGE PRESSURE REDUCING MODEL 68 DE HRV PR-MR

• ANSI FCI 70-2 Class VI seat leakage class

• Fire tested to EN ISO 6182-5:2006 (2”- 6” only)

• UL listed under VLFT category

• Lloyd’s & ABS approvals

TYPICAL APPLICATIONS

Automatic or Manual Actuated Fire Suppression Systems

Petrochemical, Oil & Gas Installations

Tunnels

Power Generation, Transformer & Transmission Plants

Flammable Storage

Hangars & Airport Terminals

Onshore / Offshore

Mining

OPERATION

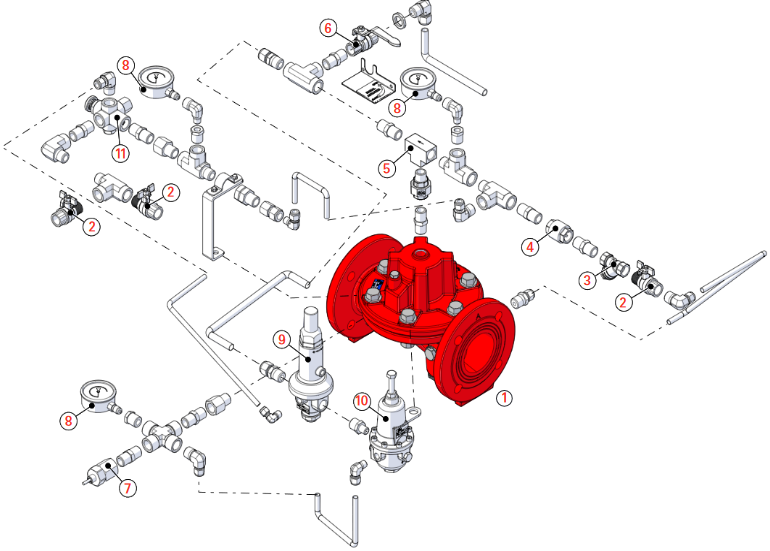

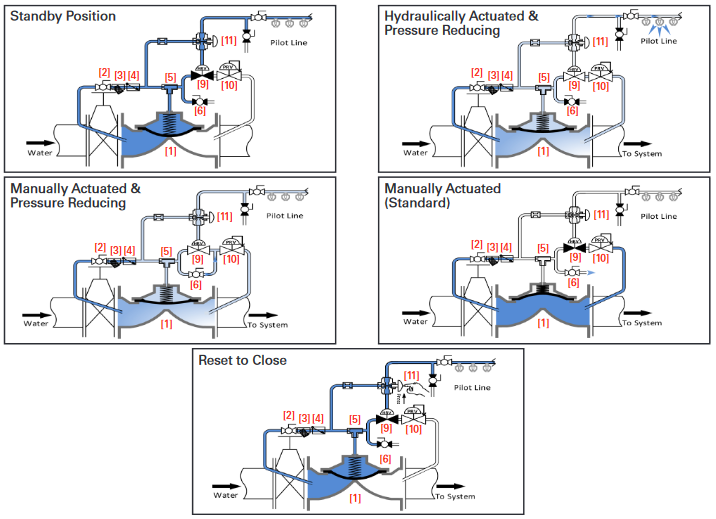

The basic control valve [1] used in this deluge system is a direct sealing elastomeric diaphragm, hydraulically operated control valve engineered specifically for fire protection systems.

In the standby position, the deluge valve is held closed by the upstream water pressure, trapped in the valve’s control chamber. The water pressure enters the control chamber through the priming line ball valve [2], a Y-Type strainer [3], a check valve [4] and a T-restrictor [5].

Under fire conditions, one (or more) of the automatic sprinklers on the wet (hydruallically-pressurized) pilot line burst. The pressure in the relay valve [9] drops, causing it to open and allowing the water to begin to drain the deluge valve’s control chamber through the pressure reducing pilot [10].

The deluge valve opens instantly, regulating to a steady, preset downstream pressure, regardless of upstream pressure or flow rate fluctuations. This allows water to flow the pipeline and through the open sprinklers over the protected area.

Manual emergency actuation is enabled by opening the emergency manual activation valve [6]. When connected through the pressure reducing pilot (upon request), manual actuation causes the deluge valve to regulate the downstream pressure regardless of upstream pressure or flow rate fluctuations. If unspecified, the manual activation valve drains the water to the atmosphere, allowing the deluge valve to open fully. When actuated, the deluge valve opens instantly and allows water to flow the pipeline and through the open sprinklers over the protected area.

When the valve trips open, the DMR (latching manual reset device) [11] isolates the relay valve the upstream pressure source. Reconnecting the upstream pressure to enable the deluge valve to close can only be achieved by pressing the DMR’s knob.

DELUGE PRESSURE REDUCING MODEL 68 DE HRV PR-MR

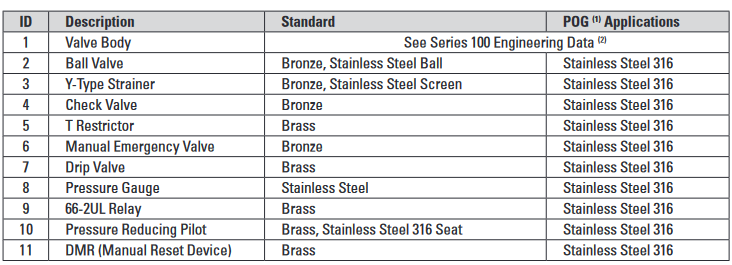

TYPICAL MATERIALS

DELUGE PRESSURE REDUCING MODEL 68 DE HRV PR-MR

1) Petrochemical, Oil & Gas

(2) Refer to materials selection guidelines, Engineering Data - Materials: Ductile Iron A-536 65-45-12; Cast Steel A-216 WCB; Cast Steel A-352 LCB; Austenitic
Stainless Steel A-351/CF8M; Super Duplex 2507; Nickel-Aluminum-Bronze B-148 UNS C95800

DELUGE PRESSURE REDUCING MODEL 68 DE HRV PR-MR
