DELUGE PRESSURE REDUCING MODEL 68 DE EL PR

Manufacture: INGESCO
Product code: 68 DE EL PR

Electrically Actuated, Pressure Reducing, Remote Reset Deluge Valve 2/2 Solenoid,Electrically controlled deluge/pre-action pressure reducing valve, actuated by the pipeline pressure. The valve is closed in its normal, set position and opens when a 2w solenoid valve is energized. When tripped, the valve regulates to a steady, preset downstream pressure, regardless of upstream pressure or flow rate fluctuations. It closes drip tight when the solenoid valve is de-energized. An emergency manual release valve is fitted as standard.

Zalo

Consulting hotline: 0944934114
Product information

FEATURES & BENEFITS

High pressure (PN25/375psi), high flow deluge systems

Automatic or manual emergency actuation

Hazardous, flammable & explosion classified area fire suppression

Superior design featuring exceptionally low pressure losses at high flow rates

Low lifelong maintenance costs due to straightforward design

Applicable for water, seawater & foam

Out of box fully assembled & tested valves

Factory trimmed for vertical or horizontal installations without modification

Extensive valve & trim materials selection and corrosion protection coating

CERTIFICATION & COMPLIANCE

DELUGE PRESSURE REDUCING MODEL 68 DE EL PR

• ANSI FCI 70-2 Class VI seat leakage class

• Fire tested to EN ISO 6182-5:2006 (2”- 6” only)

• UL listed under VLFT category

• Lloyd’s & ABS approvals

TYPICAL APPLICATIONS

Automatic or Manual Actuated Fire Suppression Systems

Petrochemical, Oil & Gas Installations

Tunnels

Power Generation, Transformer & Transmission Plants

Flammable Storage

Hangars & Airport Terminals

Onshore / Offshore

Mining

OPERATION

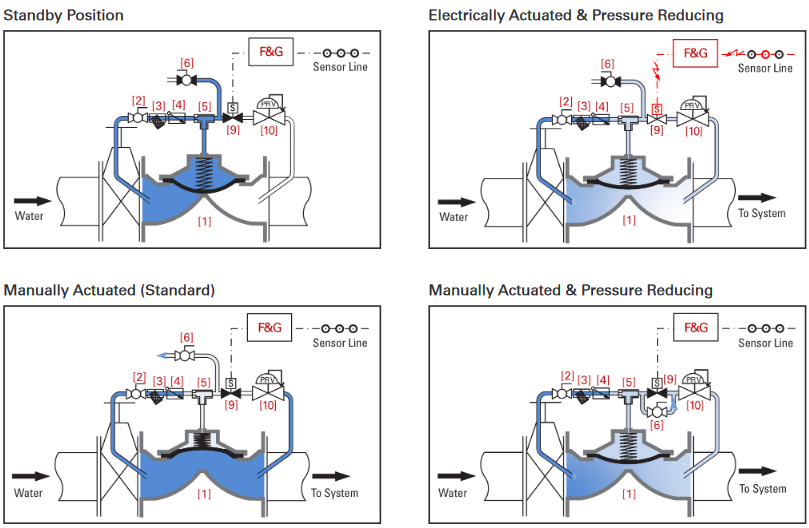

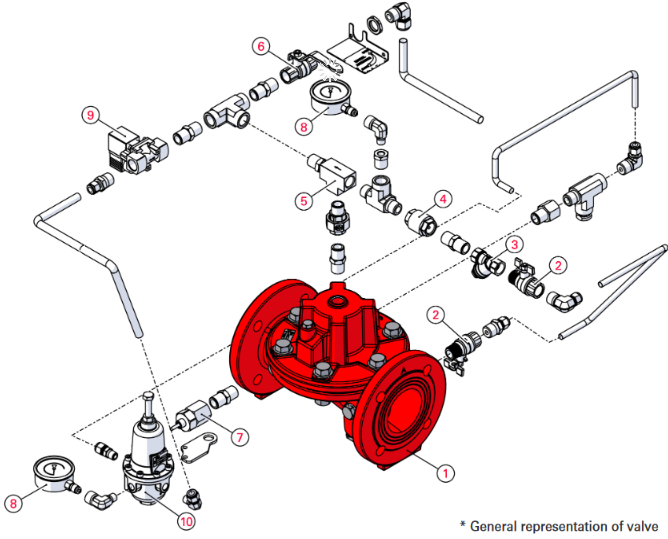

The basic control valve [1] used in this deluge system is a direct sealing elastomeric diaphragm, hydraulically operated control valve engineered specifically for fire protection systems. The system includes a 2/2-way N.C. solenoid [9] as the interface between the fire alarm control panel - monitoring heat, smoke or flames - and the deluge valve.

In the standby position, the deluge valve is held closed by the upstream water pressure, trapped in the valve’s control chamber. The water pressure enters the control chamber through the priming line ball valve [2], a Y-type strainer [3], a check valve [4] and a T-restrictor [5].

Under fire conditions, a fire alarm control panel energizes the 2/2-way N.C. solenoid (or de-energizes the coil of a continuously energized ED 100% normally open solenoid for SIL 3-4 rated systems). The 2/2-way N.C. solenoid opens, allowing the water to begin to drain the deluge valve’s control chamber through the pressure reducing pilot [10]. The deluge valve opens instantly, regulating to a steady, preset downstream pressure, regardless of upstream pressure or flow rate fluctuations. This allows water to flow the pipeline and through the open sprinklers over the protected area.

Manual emergency actuation is enabled by opening the emergency manual activation valve [6]. When connected through the pressure reducing pilot (upon request), manual actuation causes the deluge valve to regulate the downstream pressure regardless of upstream pressure or flow rate fluctuations. If unspecified, the manual activation valve drains the water to the atmosphere, allowing the deluge valve to open fully. When actuated, the deluge valve opens instantly and allows water to flow the pipeline and through the open sprinklers over the protected area.

DELUGE PRESSURE REDUCING MODEL 68 DE EL PR

TYPICAL MATERIALS

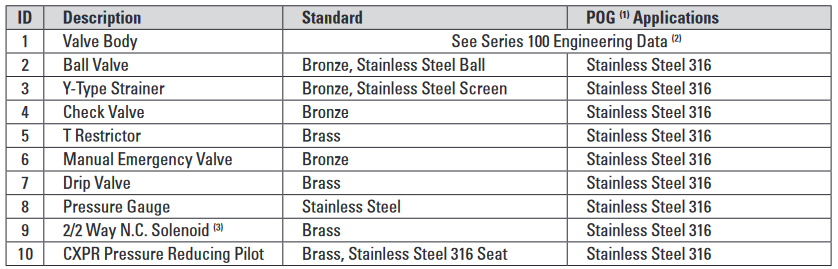

DELUGE PRESSURE REDUCING MODEL 68 DE EL PR

(1) Petrochemical, Oil & Gas

(2) Refer to materials selection guidelines, Engineering Data - Materials: Ductile Iron A-536 65-45-12; Cast Steel A-216 WCB; Cast Steel A-352 LCB; Austenitic
Stainless Steel A-351/CF8M; Super Duplex 2507; Nickel-Aluminum-Bronze B-148 UNS C95800
(3) Consult factory

DELUGE PRESSURE REDUCING MODEL 68 DE EL PR
