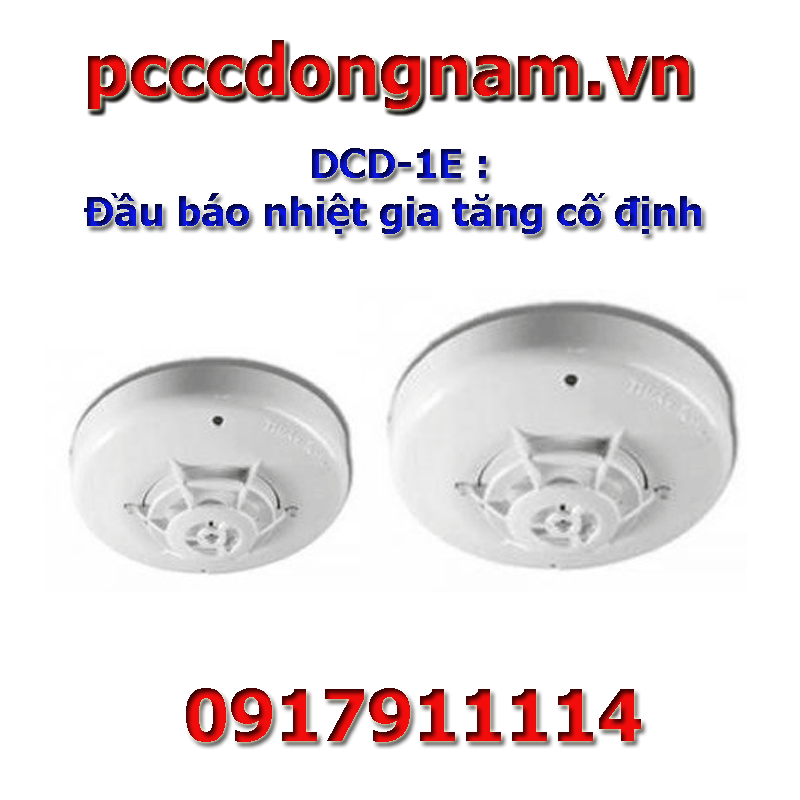

DCD-1E Fixed/Incremental Heat Detector
⭐Top 5 quality rating ,Latest price ,12 month warranty , 100% genuine Hochiki Contact 0917911114The heat riser alarms when the temperature rises with the heating rate exceeding the allowable rate or the temperature exceeds a fixed threshold. Different colored alarm LEDs to distinguish between fixed heat or rising heat alarm states. Rising heat detectors are often used in areas where smoke detectors cannot be used because the air is often polluted such as kitchens, restaurants, and waiting rooms. The DCD detector can be easily installed by simply fitting the detector the correct joint on the base and screwing it in.
Application
The heat detector raises an alarm when the temperature increases with a heating rate exceeding the allowable rate or the temperature exceeds a fixed threshold. Different colored alarm LEDs to distinguish between fixed heat or rising heat alarm states. Increased heat detectors are often used in areas where smoke detectors cannot be used because the air is often polluted such as kitchens, restaurants, and waiting rooms. The DCD detector can be installed easily by placing the detector in the correct position on the base and screwing .
Functions:
1. Enhanced performance - Early detection of temperature spikes and ambient temperature monitoring - Double protection by combining fixed and incremental temperature monitoring
2. low current consumption
3. Two LEDs for status indication
4. Designed with a small height, ensuring the aesthetics of the product
5. Wide application
Specifications
- Dimensions: 100 x 47mm (diameter x height) Weight (with base): 105g Color: White Operating temperature: -10°C ... +50°C Maximum humidity: 95% Operating voltage: 17-35VDC Standby current: 35uA Temperature rise: 1oC/min, alarm response time is 29 – 37.5 minutes 30oC/min, alarm response time is 15s – 90s Fixed temperature: 54-62oC Dust and water resistant standard: IP20
