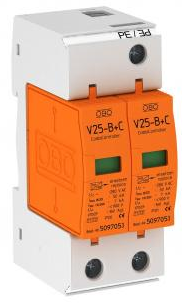

Combination arrester V25 2-pole 280 V

Manufacture: OBO
Product code: V25 2-pole 280 V

Combination arrester, lightning and surge arrester type 1+2, Item no. 5094421 | EAN 4012195382829

Zalo

Consulting hotline: 0944934114
Product information

Combination arrester V25 2-pole 280 V

Combination arrester V25 2-pole 280 V

• Complete unit consisting of upper part and base, pre-mounted and ready for connection

• For TN systems

• Plug-in arrester with dynamic cut-off unit

• With visual function display

• Protection level decoded:705:Value:RAM1; kV

• Encapsulated, non-extinguishing zinc oxide varistor arrester for use in standard distributor housings

• Labelled connections

- Application example: Buildings with open-wire power supply or for setting up lightning protection equipotential bonding in residential buildings.

Complete = Plug-in arrester and base

Connectivity options

SPD to EN 61643-11 Type 1+2
SPD to IEC 61643-11 Class I+II
Maximum continuous voltage AC 280V
Maximum discharge current (8/20 μs) 50 kA
Lightning surge current (10/350) 14 kA
Protection rating IP20

Please refer to unburnt equipment provided by Dong Nam... HERE

You can refer to the manufacturer for more information....HERE
