CDR Universal Lightning Counter Lightning Meter
Manufacturer: Ingesco. Model: CDR-Universal Origin: Spain.

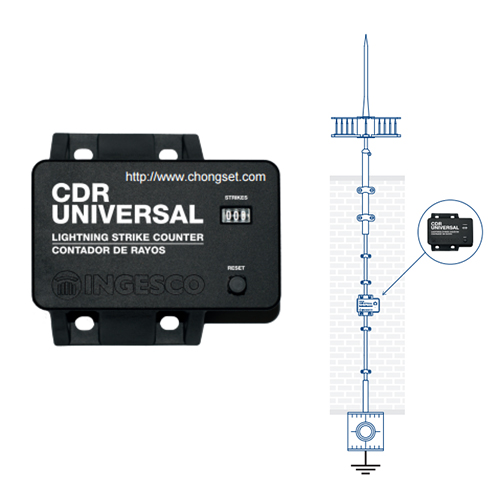

CDR Universal Lightning strike Counter detector must be installed on the grounding line of the lightning protection system, which is connected parallel to the wiring system, the distance of the CDR Universal detector to the ground shall be 2 meters (according to NF C 17 standard). - 102).
In case it is not possible to install at the lowest point of the lightning conductor, it is possible to mount it at any position and allow us to observe the equipment's parameters.
Usage of the CDR Universal Lightning strike Counter
- Used to track the number of lightning hits.
- Tell you whether your lightning protection system is working properly or not.

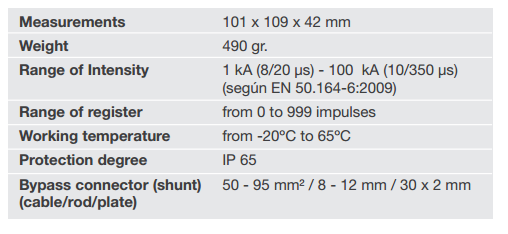

INGESCO CDR-Universal Lightning Strike Counter Specifications:
- Parameters: Counts: 000 - 999
Manufacturer: INGESCO. Model: CDR-Universal. SPAIN - Spain
- Minimum lightning intensity: 1kA (8 / 20 μs according to IEC 62.561-6:2011).
- Maximum lightning intensity: 100kA (10 / 350μs according to EN 50.164 / 6: 2009
- Designed exclusively for installation in parallel with the down conductor, never in series (sectioned down conductor).
- Compact and Strong design.
- Resettable model.
- Detecting no ohmic contact: does not affect the status of the down conductor.
- Durability.
- Secure fastening by steel parts.
The lightning strike counter CDR-UNIVERSAL, is a compact and strong device designed to detect lightning strikes upon any external lightning protection systems (lightning rods, Faraday cages, etc.). The new isolated sensor of the CDR-UNIVERSAL, ensures the lightning strikes detection independently of the protection down conductor status, or the quality of the counter fastening to the down conductor.
CERTIFICATION:
- Fulfills standard norms UNE 21.186, NFC 17.102 and IEC 62.305.
- Easy adaptation to the down conductor of any lightning protection system.
- Allows controlling the lightning rod condition.
- Works in any atmospheric condition (-20ºC to 65ºC).
- Offers updated and reliable information.
- It does not need power supply.
- Easy installation and operation.
