Catalog Sprinkler Sprinkler Tyco TY8382
Catalog Sprinkler Heads Tyco TY8382 Quick Response K Factor = 5.6 Size 1/2 in NPT (DN15) 3mm Glass Tube FM200 System Distribution CO2 System Installation 24 Advice Hotline /7 : 0917911114

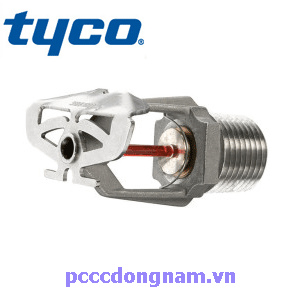

TY8382-Special horizontal tyco sprinkler head belongs to the TY-FRB SMO special nozzle series of quick response type with spray flow K=5.6. They are designed for use in highly corrosive environments.
Specifications TY8382-special horizontal tyco sprinkler
- Meets standards: UL, C-UL and LPCB
- Spray flow: K=5.6 GPM/psi½ (80.6 LPM/bar½)
- Nozzle size: 1/2 inch NPT (DN15).
- Size of glass tube: 3mm
- Activation temperature:
+135 °F (57 °C) orange colored glass tube
+ 155 °F (68 °C) red colored glass tube
+ 175 °F (79 °C) yellow glass tube
+ 200 °F (93 °C) green colored glass tube
+ 286 °F (141 °C) blue glass tube
+ 360 °F (182 °C) pink colored glass tube
- This type of nozzle is designed to be installed along the wall as an alternative to the up or down nozzle, used with Style 10 double caps and activated by glass tube.
- They are made of SMO material which prolongs the service life compared to copper alloy nozzles. However, this does not mean that this nozzle is suitable for all corrosive environments. Therefore, users should contact for advice on the suitability of anti-corrosion materials for each specific environment.
You will receive a quote from us as soon as possible..
