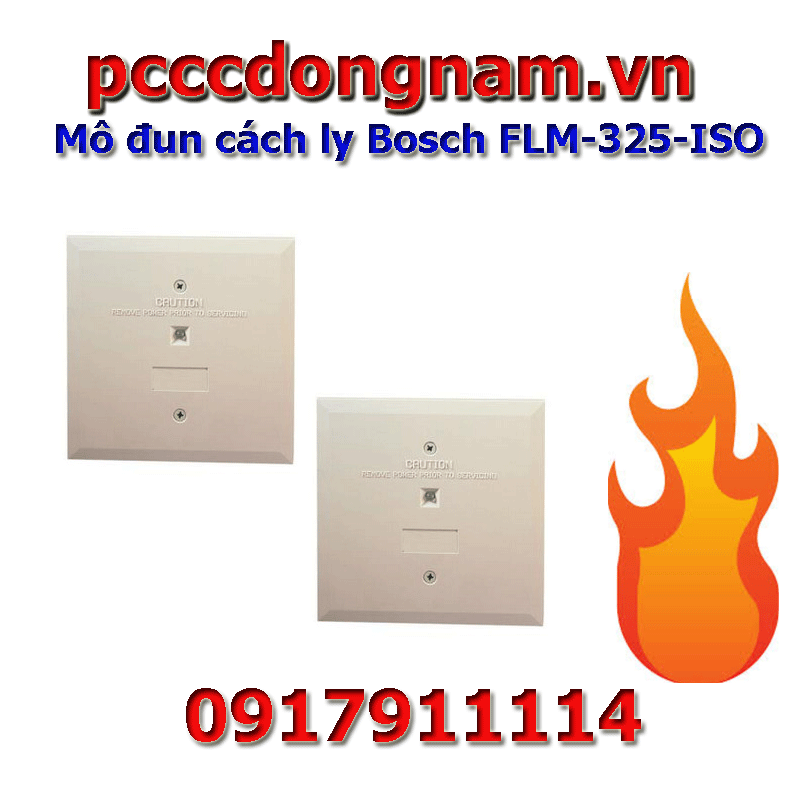

Detailed description of Bosch Isolator Module FLM‑325‑ISO
Automatically verify data line for short circuit
Contacts rated 1 A at 30 VDC
Can be placed at any position on the SLC ring
Up to 256 devices per loop for Class A (Model 7)
Yellow LED provides data line status
The FLM ‑ 325 isol ISO short circuit isolation module isolates the ash-coated portion of a specific polling circuit the system to minimize equipment loss. It fits the standard 4-inch square or double rear box.
Specifications Bosch Isolator Module FLM‑325‑ISO
Input voltage : 17 VDC to 41 VDC
Current Consumption : 0.27 mA-10 mA
Dimensions: 4.7 in. x 4.2 in. x 1.4 in. (11.9 cm x 10.7 cm x 3.6 cm)
Weight : 1.4 oz (39.7 g)
LED : yellow
Maximum number of loops : 127
Operating Temperature: +32°F to +120°F (0°C to +49°C)
Humidity : 90%
