BASIC VALVES SERIES 100 MODELS 44 68 77
The Series 100 control valves are automatic, hydraulically actuated, direct diaphragm sealing globe/weir type valves with a proven and reliable design. These valves are designed for use in fire protection applications including deluge, pre-action, pressure relief, monitors, hydrants and are suitable for water, foam and seawater systems. The valves consist of three major components: body, cover and diaphragm assembly.
.png "BASIC VALVES SERIES 100 MODELS 44 68 77")
UL Listed basic untrimmed valve models: 44, 68, 77
Model 44: Up to 230psi working pressure, threaded.
Model 68: Up to 375psi working pressure, flanged & grooved with drain port.
Model 77: Up to 230psi working pressure, flanged & grooved.
• UL Listed under the following categories:
– “Special Systems Water Control Valves” Deluge (VLFT) – Model 68
– “Fire Pump Pressure Relief Valves” (QXZQ) – Models 44 & 77
• ABS Design assessment & Fire tested to EN ISO 6182-5:2006 – Model 68 2”-6”
• Lloyd’s type approval
• CCCf – Model 68 DEEL(CN)
• GOST-R
• Manufacture & conformity assessment of pressure equipment & assemblies Directive (97/23/EC / EN1074)
Consult the UL listing guide or contact OCV Fluid Solutions for a complete list of approved applications and valve sizes.
Valve Features
STANDARD
• Listed & approved for use in fire protection systems by various global standards
• Quick opening: Non-slam closing operation
• Drip-tight shut off to ANSI FCI 70-2 VI seat leakage class
• Simple and reliable design
• Low lifelong maintenance costs due to straightforward design
• Easy installation and inline maintenance
• High-grade construction materials
• Exceptionally low pressure losses
OPTIONAL

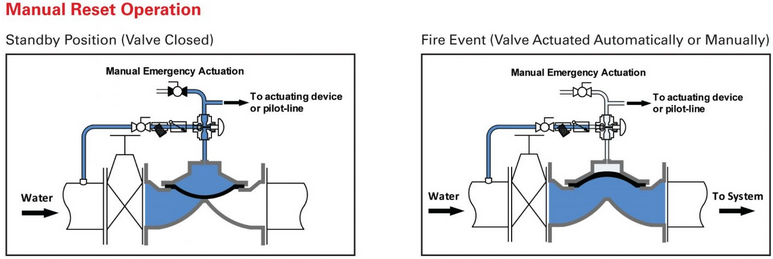

• Remote or manual reset
• Manual, electric, hydraulic, pneumatic and combined control trims
• Explosion proof, SIL redundant solenoids & trim accessories
• Seawater and foam concentrate service

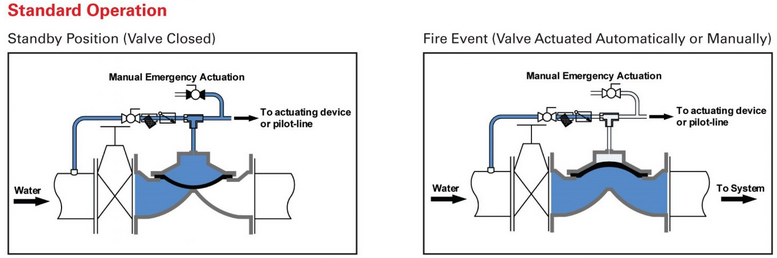

Valve Operation

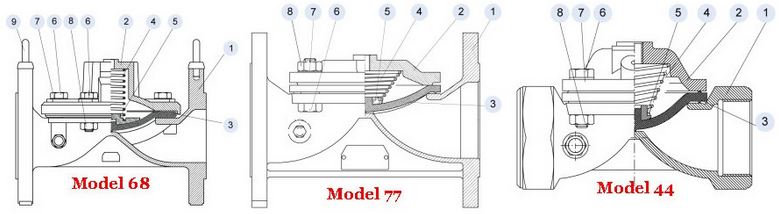

Model 68 shown. Same principle of operation is applicable for Models 44 & 77.
.png "BASIC VALVES SERIES 100 MODELS 44 68 77")
.png "BASIC VALVES SERIES 100 MODELS 44 68 77")
.png "BASIC VALVES SERIES 100 MODELS 44 68 77")

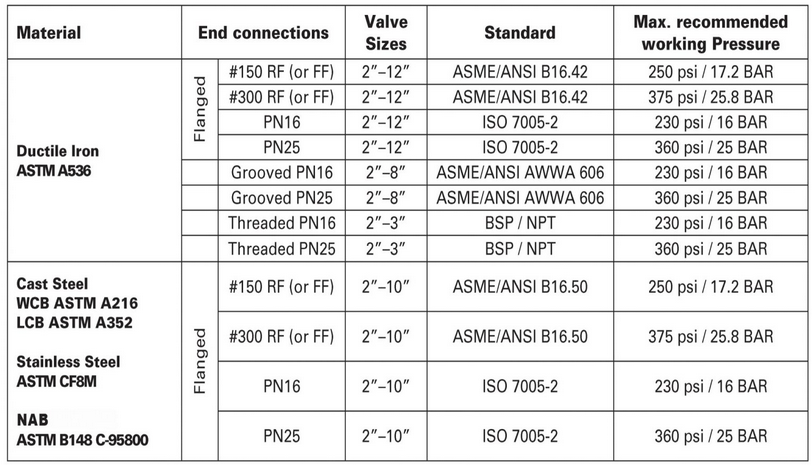

PRESSURE RATING
Recommended nominal system pressure to flange class for typical materials as:
Ductile Iron ASTM A536
Stainless Steel ASTM CF8M
Cast Steel ASTM A216 & ASTM A352 LCB
NAB ASTM B148 C-95800
• 250psi nominal system pressure for flanges ANSI B16.42 & ANSI B16.50 Class #150 accordingly.
• 375psi maximal system pressure for flanges ANSI B16.42 & ANSI B16.50 Class #300 accordingly.
.png "BASIC VALVES SERIES 100 MODELS 44 68 77")

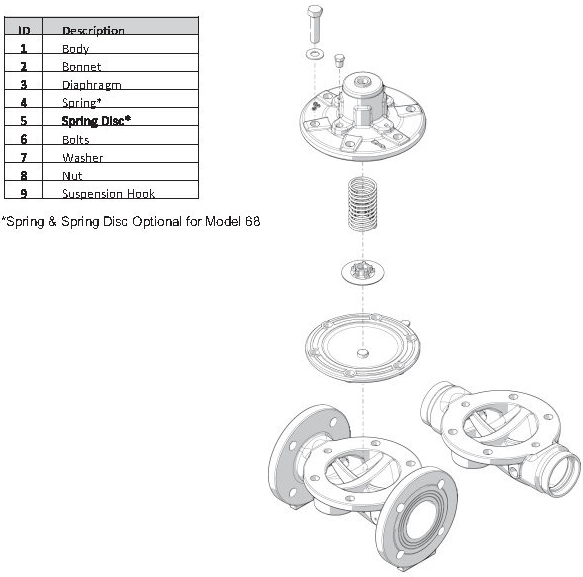

Material Specifications
COMPONENTS
.png "BASIC VALVES SERIES 100 MODELS 44 68 77")
.png "BASIC VALVES SERIES 100 MODELS 44 68 77")
SPECIFICATIONS
Temperature:
Water up to 85°C / 185°F max
Sizes:
Straight Flow: .75”- 24” / 20-600 mm
UL Listed: 2”-10” / 50-250 mm
Lloyd’s Type Approved: 1”- 24” / 25-600 mm
End Connections:
Flanged (Models 68 & 77) 1”- 24”: ISO PN16 & ISO PN25; ASME/ANSI B16.42 & B16.50 Class #150 & Class #300
Additional options available upon request.
Grooved (Models 68 & 77) 2”- 8”: ASME/ANSI AWWA 606
Threaded (Model 44) .75”- 3”: BSP / NPT
Body & Cover Material:
Ductile Iron ASTM A536
Cast Steel ASTM A216 & A352 LCB
Stainless Steel ASTM CF8M
NAB ASTM B148 C-95800
Coating Material:
High Built, Fusion Bonded Epoxy
Optional Coating Material:
UV Protection
Polyester
Other coatings conforming to ISO-12944 C4, C5 & C5M
Internal Trim Material:
Stainless Steel
Elastomers:
Neoprene
NBR
NR
EPDM
Control Trim & Accessories:
Brass
Stainless Steel
Bronze
Monel
NAB
Super Duplex
Optional Components:
Pressure Reducing Feature
Position Indicator
Limit/Proximity Switch Assembly
Pressure Switch
Alarm Test Trim
Drain Valve
Explosion Proof
Open/Close Speed Control
Block & Bleed Valves for Pressure Sensing Components
PPCS (Pneumatic Pressure Control System for Pneumatically Actuated Models)

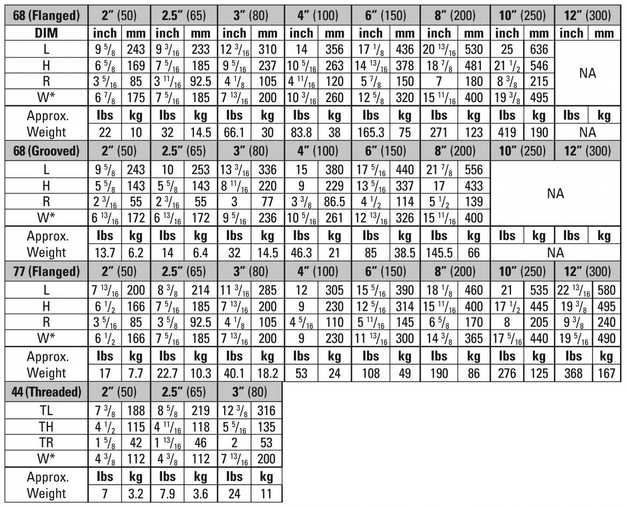

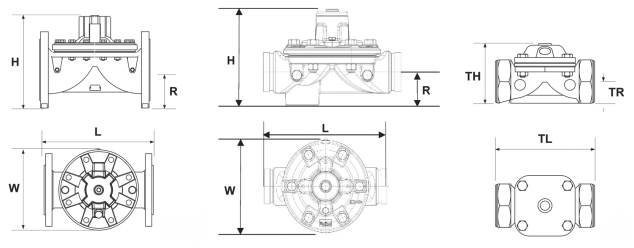

.png "BASIC VALVES SERIES 100 MODELS 44 68 77")
.png "BASIC VALVES SERIES 100 MODELS 44 68 77")
