AW-AIO2188-OUT Addressable Output Module

Manufacture: INGESCO
Product code: AW-AIO2188-OUT

AW-AIO2188-OUT Addressable Output Module is a mated product of the 2188/2100 series fire alarm control panels.

Zalo

Consulting hotline: 0944934114
Product information

Overview AW-AIO2188-OUT Addressable Output Module

The AW -AIO2188-OUT Intelligent Output Module(AW-AIO2188-OUT module for short) is used with AW-AFP2188, a two-bus linkage fire alarm control panel.

It is mainly used to realize an output control for fire linkage equipment (such as smoke dampers, blow valves and fire dampers) and receive the feedback signals of the fire linkage equipmen t so that a judgment on whether or not the fire linkage equipment is operating normally can be done.

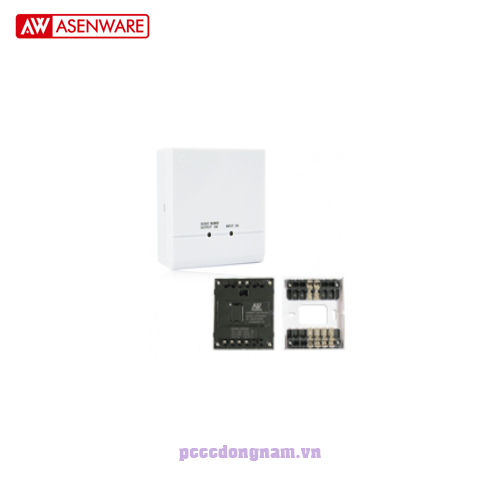

AW-AIO2188-OUT Addressable Output Module

 AW-AIO2188-OUT Addressable Output Module

Features AW-AIO2188-OUT Addressable Output Module

Mode of operation: Nonpolar two-wire system;

Operation indicator: The inspection indicator will blink once about every 12 seconds in the inspection status or remain lit in the operation status.

Technical parameters AW-AIO2188-OUT Addressable Output Module

Quiescent current: <0.6mA (power-down mode);

Action current: <10mA ;

Operating environment: Temperature: -10 ℃ ~ 50 ℃ ; relative humidity: ≤ 95% (40 ℃ ± 2 ℃ , without condensation);

Capacity of the output control contact: 2A@DC30V;

Terminal load: 47K resistance;

External dimensions: 86×86×40(mm);

Weight: about 130g.
