AW-AIO2188-IN Addressable Input Module

Manufacture: INGESCO
Product code: AW-AIO2188-IN

AW-AIO2188-IN Addressable Input Module is a mated product of the 2188/2100 series fire alarm control panels.

Zalo

Consulting hotline: 0944934114
Product information

Overview AW-AIO2188-IN Addressable Input Module

The AW -AIO2188-IN Intelligent input module (AW-AIO2188-IN module for short) is used with AW -AFP2188,a two-bus fire alarm control panel. It can be connected with a conventional smoke detector, a conventional heat detector, a conventional manual call point, a conventional hooter/horn and some other equipment.

After the said equipment starts to operate, the alarm signal output will be sent by the AW-AIO2188-IN module to the fire alarm control panel through a signal bus to give a fire alarm.

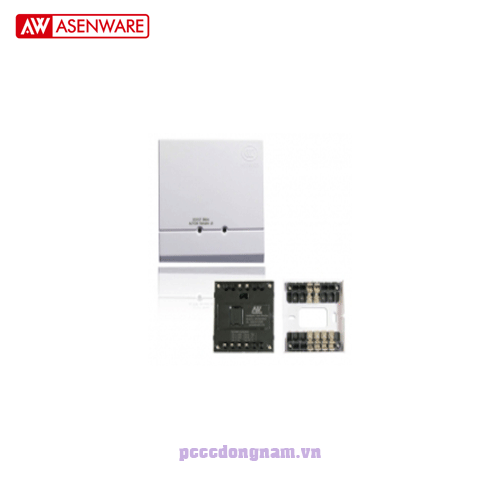

AW-AIO2188-IN Addressable Input Module

AW-AIO2188-IN Addressable Input Module

Features AW-AIO2188-IN Addressable Input Module

Mode of operation: Nonpolar two-wire system;

Operation indicator: The inspection indicator will blink once about every 12 seconds in the inspection status or remain lit in the operation status;

Technical Parameters AW-AIO2188-IN Addressable Input Module

Quiescent current: <0.5mA (bus); <6mA (power line);

Action current: <2mA (bus); <15mA (power line);

Operating environment: Temperature: - 10 ℃ ~ 50 ℃ ; relative humidity: ≤ 95% (40 ℃ ± 2 ℃ , without condensation);

Terminal load: 4.7K resistance;

External dimensions: 86×86×40(mm);

Weight: about 119g.

Please see also AV lice press equipment HERE

Or all ASENWARE fire alarm equipment
