Approved Addressable Fire Alarm Smoke Detector AW-D301

Manufacture: INGESCO
Product code: AW-D301

AW-D301 addressable photoelectric smoke detector (Detector hereunder) is a kind of photoelectric smoke detector. With an internal microprocessor, it supports electronic coding and is accessed through ...

Zalo

Consulting hotline: 0944934114
Product information

 LPCB Approved Addressable Fire Alarm Smoke Detector AW-D301 (Detector hereunder) is a kind of photoelectric smoke detector. With an internal microprocessor, it supports electronic coding and is accessed through AW-FP300 fire alarm control panel via a two-wire bus. The detector realizes real-time acquisition of the in situ smoke concentration data and sends back the data to a fire alarm control panel. It can also receive and execute the control commands given by a fire alarm control panel.

The detector is suitable for such industrial and civil buildings that have a great deal of smoke during fires but no smoke under normal circumstances, such as restaurants, hotels, teaching buildings, office buildings, computer rooms, communication machine rooms, libraries and archives. It is not suitable for places with a great deal of retained dust and water mist, places where steam and/or oil mist may be generated and places with retained smoke under normal circumstances.

Features  LPCB Approved Addressable Fire Alarm Smoke Detector AW-D301

1) It can realize electronic coding and rewrite the address via coder in situ.

2) Within a single-chip microcomputer, it can process the sampling data in real-time, save the latest 144 historical data and realize a curve tracing for the field situation.

3) It has a temperature, humidity and dust accumulation drift compensation function and a sensor fault detection function (fault reporting to fire alarm control panel)

4) Non-polarity, two-bus connection that ensures convenient installation and maintenance.

5) Designed with an upper cover and a lower cover and installed on an independent base, it can be installed, debugged and maintained conveniently.

6) Built-in remote indicator output terminal, drive remote indicator lit when fire alarm

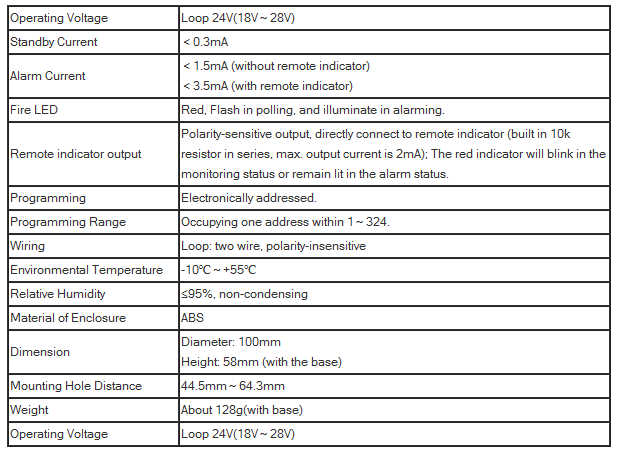

Technical LPCB Approved Addressable Fire Alarm Smoke Detector AW-D301

LPCB Approved Addressable Fire Alarm Smoke Detector AW-D301
