Addressable Smoke Detector AW-D101
Asenware AW-D101 smoke detector is an intelligent smoke detector, which can be configured with Asenware AW-FP100 Series Addressable Fire Alarm Control Panel. Each point (devices) can be given specific
Overview Addressable Smoke Detector AW-D101
Asenware AW-D101 smoke detector is an intelligent smoke detector, which can be configured with Asenware AW-FP100 Series Addressable Fire Alarm Control Panel. Each point (devices) can be given specific ID, which allows the panel to continuously monitor specific detector location (point). It reduces the maintenance cost and makes it easier to maintain the system.
Addressable Smoke Detector AW-D101 features:
• Addressable-analog communication
• Low standby current for continuous monitoring (≤2.5mA)
• Two-wire connection
• Two LEDs (RED), blinks in normal condition and becomes stationary during fire
• Remote test Panel
Spacing
Spacing of detector must be followed by standard EN 54 or NFPA 72. NFPA 72 suggests for low airflow application spacing of 9.1 m for ceiling height up to 3.15 m can be applicable. However, please follow the specific codes and local codes for specific applications.

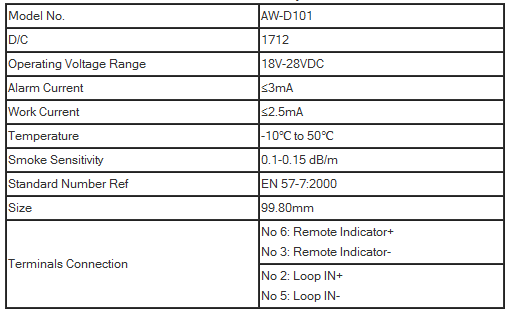

Addressable Smoke Detector AW-D101 Technical parameters:
.png "Addressable Smoke Detector AW-D101")
smoke detector installation smoke detector placement

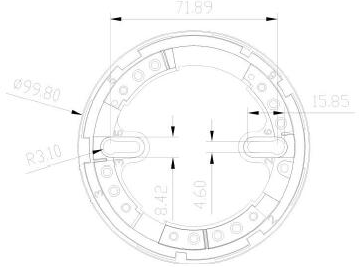

AW-D101 addressable detector use a separate base to simplify the installation and maintenance. For proper installation, terminal connections to be followed as shown below
.png "Addressable Smoke Detector AW-D101")
