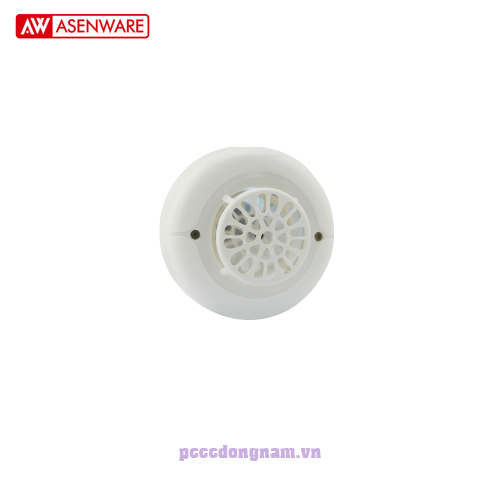

Addressable Heat Detector AW-D102
Asenware AW-D102 heat detector is an intelligent rate of rise heat detector, which can be configured with Asenware AW-FP100 Series Addressable Fire Alarm Control Panel. Each point (devices) can be giv...
Asenware Addressable Heat Detector AW-D102 is an intelligent rate of rise heat detector, which can be configured with Asenware AW-FP100 Series Addressable Fire Alarm Control Panel. Each point (devices) can be given specific ID, which allows the panel to continuously monitor specific detector location (point). It reduces the maintenance cost and makes it easier to maintain the system.
Addressable Heat Detector AW-D102
Addressable Heat Detector AW-D102 Features:
• Addressable-analog communication
• Rate-of-rise feature activates when ambient temperature increases at the rate of 7.1 ℃/5S
• Low Standby current
• Two-wire connection
• Two LEDs (RED), blinks in normal condition and becomes stationary during fire alarm condition.
• Remote test Panel
Spacing
Spacing of detector must be followed by standard EN 54 or NFPA 72. N FPA 72 suggests for low airflow application spacing of 9.1 m for ceiling height up to 3.15 m can be applicable. However, please follow the specific codes and local codes for specific applications.
Addressable Heat Detector AW-D102 Installation
AW-D102 addressable detector use a separate base to simplify the installation and maintenance. For proper installation, terminal connections to be followed as shown below.
.png "Addressable Heat Detector AW-D102")

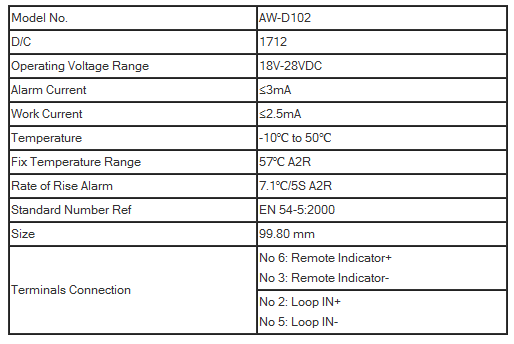

Technical parameters Addressable Heat Detector AW-D102
.png "Addressable Heat Detector AW-D102")
