Addressable Heat and Smoke Detector Combination Detector AW-D103
Asenware AW-D103 is combination heat and smoke detector, it is an intelligent addressable detector, which can be configured with Asenware AW-FP100 Series Addressable Fire Alarm Control Panel
Overview Addressable Heat and Smoke Detector Combination Detector AW-D103
Asenware AW-D103 is combination heat and smoke detector, it is an intelligent addressable detector, which can be configured with Asenware AW-FP100 Series Addressable Fire Alarm Control Panel. Each point (devices) can be given specific ID, which allows the panel to continuously monitor specific detector location (point). It reduces the maintenance cost and makes it easier to maintain the system. It provides fire signal when both conditions are satisfied which reduces the chances of false alarm. The heat sensing portion utilizes a proven thermistor for accurate and reliable heat detection
Features Addressable Heat and Smoke Detector Combination Detector AW-D103
Addressable Heat and Smoke Detector Combination Detector Features:
• Addressable-analog communication
• Low standby current for continuous monitoring(≤2.5mA)
• Two-wire connection
• Two LEDs (RED), blinks in normal condition and becomes steady during fire alarm condition.
• Remote test Panel
Spacing
Spacing of detector must be followed by standard EN 54 or NFPA 72. NFPA 72 suggests for low airflow application spacing of 9.1 m for ceiling height up to 3.15 m can be applicable. However, please follow the specific codes and local codes for specific applications.
Technical parameters
.png "Addressable Heat and Smoke Detector Combination Detector AW-D103")
Smoke and Heat Detector Installation

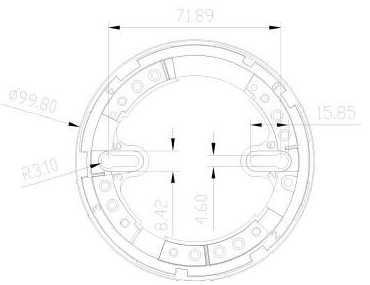

AW-D103 addressable detector use a separate base to simplify the installation and maintenance. For proper installation, terminal connections to be followed as shown below.
.png "Addressable Heat and Smoke Detector Combination Detector AW-D103")
All dimensions are in mm
