Addressable Fire Alarm Control Panel 1-8 Loop AW-FP100
Addressable Fire Alarm Control Panel 1-8 Loop AW-FP100 Addressable Fire Alarm Control Panel AW-FP100 are intelligent panel which are carefully designed to make it suitable for most of applications. It can be configured with other panels or control systems...
Addressable Fire Alarm Control Panel 1-8 Loop AW-FP100

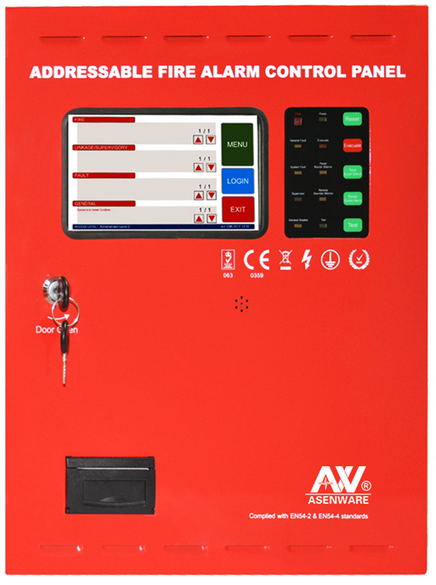

Addressable Fire Alarm Control Panel 1-8 Loop AW-FP100 are intelligent panel which are carefully designed to make it suitable for most of applications. It can be configured with other panels or control systems. It’s user friendly functionality makes it suitable to program and configure the devices. 7” touchscreen display gives the information for fire alarm, trouble , supervisory and other related information all the time.
.png "Addressable Fire Alarm Control Panel 1-8 Loop AW-FP100")
Addressable Fire Alarm Control Panel Technical parameters:
AW-FP100 series can be configured with just a few devices for small building applications, or for a large area or high-rise application. Simply add additional equipment to suit the application like detectors, modules and other compatible devices. It is supplied with cabinet of IP 30 rating (standard). This panel fully complied with the requirement of EN 54-2 and EN 54-4.
Product range:
1. Addressable fire alarm system(FP100 series,2189,2100 series)
2. Conventional fire alarm system(2166 series)
3. FM200 gas fire suppression system
4. Emergency light system
5. Fire pump system
6. Fire hose and fire hose reel cabinet
.png "Addressable Fire Alarm Control Panel 1-8 Loop AW-FP100")
Addressable Fire Alarm Control Panel 1-8 Loop AW-FP100
• Delay function for zones for Notification Appliance Circuits (NACs)
• 7” Touchscreen LCD Color Display which gives necessary and additional information as described in EN:54-2
• 2 wire cable for all addressable devices
• Zone test and individual device testing
• Zone Disable and individual device isolation
• Delay, override and abort functionality
• User friendly : easily configurable windows using Panel itself
• 250 intelligent detectors or modules for one loop circuit
• Up to 8 Loop cards can be installed and configured
• Interconnection of ….panels and other equipments
• 2000 events can be stored in the history
• Mini- Printer to print the status of events
• Network with Central Control Panel
• Access Level entry to control and configure panel
• Integral power supply with charger
• Circuits can be configured as Class A or Class B
• Fire Alarm, Fault (Trouble) and Supervisory relays
• Earth Fault detection
• CAN BUS Network System
• Network Available Options : GSM/IP/Cloud
.png "Addressable Fire Alarm Control Panel 1-8 Loop AW-FP100")
Addressable Fire Alarm Control Panel Technical parameters:
.png "Addressable Fire Alarm Control Panel 1-8 Loop AW-FP100")
