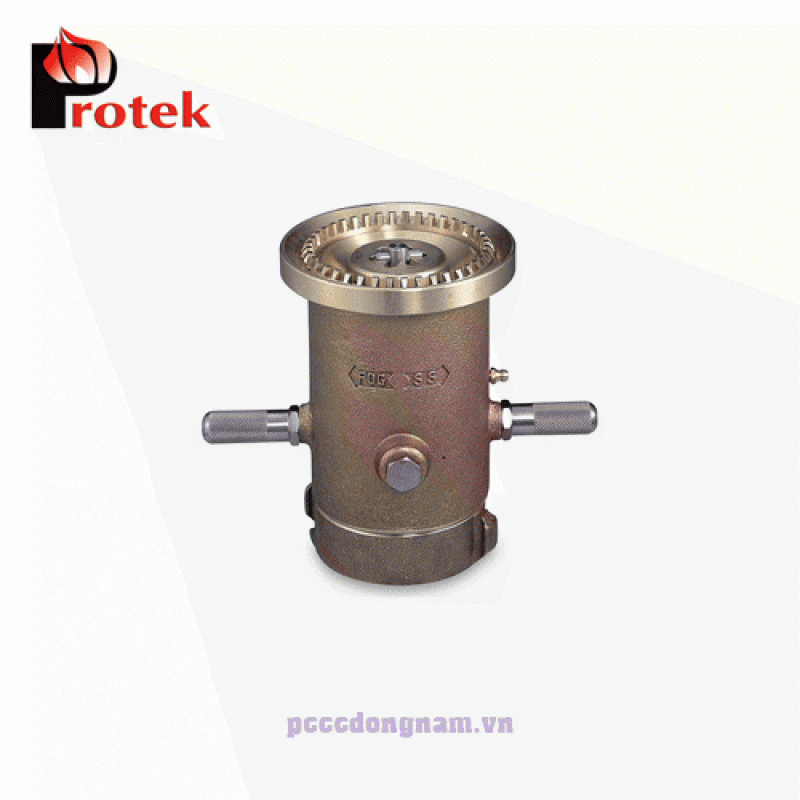

822-BC Adjustable Flow Monitor Nozzle

Product code: 822-BC

Customizable spray nozzle with 822-BC flow, can be used with high flow, for complex fires, ensuring effective fire fighting.

Zalo

Consulting hotline: 0944934114
Product information

Features

Spring loaded baffle enables flow rate selection

Brass construction for corrosion resistance

Combination of straight stream and variable fog patterns

Straight stream is clean and far-reaching

Fog pattern is wide, dense and fully adjustable

Flow and pressure are laser engraved on the baffle

Nozzle must be shut down to change flow setting

Low maintenance, high quality components

Specifications

Style: 822-BC
Product Name: Adjustable Flow Monitor Nozzle
Flow Rate: 150, 250, 350, 500 GPM (550, 950, 1325, 1900 LPM)
Operating Pressure: 100 psi (7 bar)
Inlet: 2-1/2" (65 mm)
Teeth: Fixed
Material: Brass
Length: 6.7" (170 mm)
Weight: 12.8 lbs (5.8 kg)
Compatible Products: 611, 612, 636, 648, 649, 736
