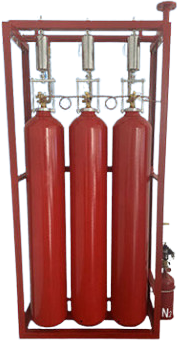

70L 60s CO2 fire extinguisher with measuring device
Brand:xingjin ✔️ Certification: CAL, CMA, CNAS, ILAC-MRA, CCC , Model Number: QME70 ,Equipment nitrogen pressure :6.0 ± 1.0Mpa (20
℃) ,Spray time: ≤60 seconds , Extinguishing model: Enclosed flooding ,Work pressure: 5.7MPa ,Cylinder capacity: 70L , Dealer capacity: 42kg ,Type: Pipe network , Start mode:Automatic, Manual Electrical, Mechanical Emergency Manual
- Description: Overwhelming repression. Carbon dioxide is a colorless, odorless, non-conductive gas with a density about 50% greater than air. Our high pressure CO2 system suppresses fires by providing a heavy layer of gas that absorbs heat the fire and reduces the oxygen content of the atmosphere to unburnable levels.
- No damage. As a natural element in the atmosphere, carbon dioxide dissipates the air allowing an almost immediate return to "business as usual" without the interruption of costly cleanup and damage costs. property due to disinfectant residues. This results in less repair costs and reduced downtime.
- Specifications
| STT | Descriptions | Specifications |
| 1 | Model | QME70 |
| 2 | Capacity | 70Ltr |
| 3 | Gas weight | 42kg |
| 4 | Working pressure | 5,7MPa |
| 5 | Max pressure | 12,4MPa |
| 6 | Spray time | ≤60 giây |
| 7 | Maximum fill rate | 0,6kg / L |
| 8 | Boot source | DC24V / 1.6A |
| 9 | Exhaust device working pressure | Van chứa: 19 ± 0,95MPa; Manifold: 15 ± 0,75MPa |
| 10 | Pressure nitro | 6,0 ± 1,0Mpa (20 ℃) |
| 11 | Usage environment | Nhiệt độ: 0 ~ 50 ℃ |
.png "Thiết bị chữa cháy CO2 70L 60s có thiết bị đo lường")
- The components The pipeline network type of CO2 automatic fire extinguishing system is mainly composed of three parts. Fire fighting equipment and pipe fittings and electrical fittings. Extinguishing devices are such things, like cylinders for charging and storing CO2, frames and actuators (nitrogen cylinders) to activate storage cylinders for waste discharge, etc. Piping fittings are conduits for connecting fire fighting equipment and guides to the protected area, such as high pressure galvanized steel pipes and flanges and elbows, etc.
.png "Thiết bị chữa cháy CO2 70L 60s có thiết bị đo lường")
.png "Thiết bị chữa cháy CO2 70L 60s có thiết bị đo lường")
- Applications: Library and archive room, electronic computer room, electrical substation, telecommunications room, hangar, garage, marine engine room, cargo, spray painting room, boiler room, control center control, etc. It is suitable for extinguishing all kinds of flammable liquid and solid fires; gas fires in which power may be cut off before extinguishing the fire.
- Rules of work: This is an illustration of the working principle of the whole system,
.png "Thiết bị chữa cháy CO2 70L 60s có thiết bị đo lường")
