40 Meter Conventional Reflective Beam Detector AW-BK901-40

Manufacture: INGESCO
Product code: AW-BK901-40

This Beam Detector has built in Laser beam pointing and Digital guide display for real user friendly alignment method.

Zalo

Consulting hotline: 0944934114
Product information

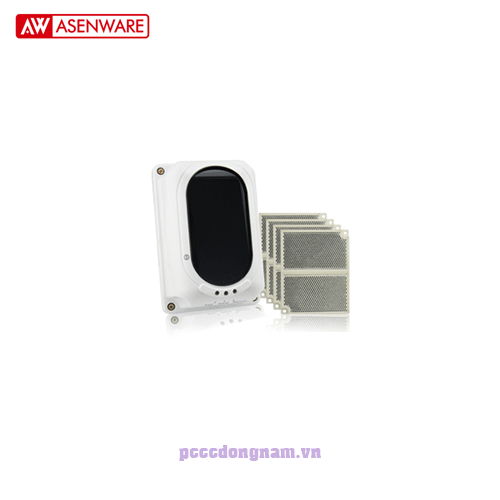

Overview 40 Meter Conventional Reflective Beam Detector AW-BK901-40

AW-BK901 Conventional Reflective Beam Detector has built in Laser beam pointing and Digital guide display for real user friendly alignment method. The Laser beam pointing accurately point the exact location where to mount mirror and with additional digital guide display allows to monitor and guide on the actual light intensity between the mirror and detector which cannot be seen by our naked eye making it more easy and convenient in alignment commissioning.

The AW-BK901 has four adjustable operational range of between 8 to 20, 40, 70 and 100 meters beside with three adjustable sensitivity setting ranges 2.6dB to 4.8dB to meet the specific environmental requirement. The AW-BK901 works on the principle of reflective infrared beam obscuration. Used in conjunction with a reflector, it will notify the fire alarm panel when the infrared beam is obscured by smoke. Secure and quick communication through the onboard processor enables the detector to make its own decision and drift compensation resulting in greater automation.

The AW-BK901 is ideal for use high ceiling and wide areas such as warehouses, large storages, shopping malls, leisure centres, exhibition halls, hotel lobbies, printing houses, garment factories, museums and prisons, as well as places where slight smoke particles or corrosive gas exist.

40 Meter Conventional Reflective Beam Detector AW-BK901-40

40 Meter Conventional Reflective Beam Detector AW-BK901-40

Features 40 Meter Conventional Reflective Beam Detector AW-BK901-40

1.      Manufacture in compliance with EN54-12;

2.      Hassle free alignment,   built with digital guide display and laser beam pointing;

3.     Employ single-ended design through reflective mirror;

4.     Four ranges wide monitoring 8-100 meters via encoder;

5.     Three users programming sensitivity adjustment;

6.     Built-in microprocessor;

7.     Self-diagnosis function can monitor for internal faults

8.     Automatic compensation for factors weakening received signals, such as dust contamination, positional movement and ageing of the transmitter;

9.     Fire and Fault interfacing relays;

10.  Attractive and pleasing appearance;

11.  Real User friendly alignment method.

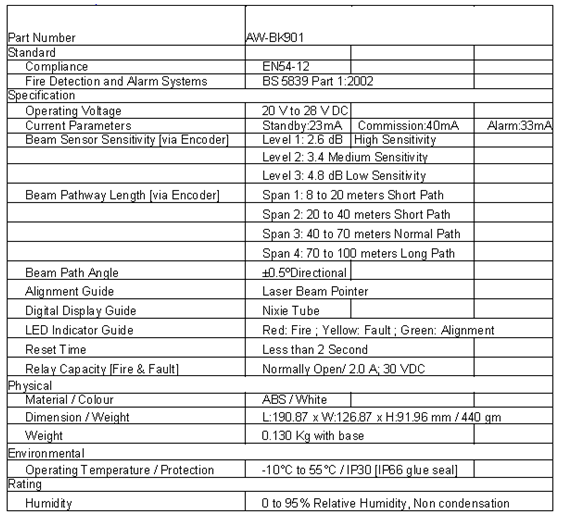

Tecnical 40 Meter Conventional Reflective Beam Detector AW-BK901-40

40 Meter Conventional Reflective Beam Detector AW-BK901-40
