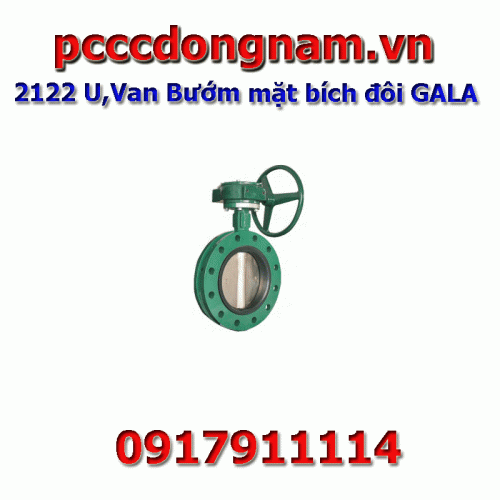

2122 U,GALA Flange Butterfly Valve

Manufacture: gala valves
Product code: 2122 U

2122 U,GALA Double Flange Butterfly Valve butterfly fire valve double flange connection, stainless steel foil used for fire fighting flow system 100% genuine imported, 12 warranty Monthly delivery nationwide, contact technical advice and quote: 0917.911.114

Zalo

Consulting hotline: 0944934114
Product information

Specifications

+ Standard:

MSS SP-67

API 609 Type A

BS EN593 / BS5155

+ Diameter : 6 "-48" / DN150-DN1200

+ Working pressuse: 10Bar / 16Bar



API 609 Bảng 1

ISO 5752 Dòng 20

EN 558 Sê-ri 20 (DIN 3202 T3 K1)

BS 5155 Series 4

+ Mặt bích :

ANSI B16.1 Class125 / 150

AWWA C207

MSS SP44 Class150

DIN 2501 PN6 /
10/16 EN1092-2 PN6 /
10/16 BS10 Bảng D / E

JIS B2220 5K / 10K / 16K

AS4087 PN14 / 16



+ Standard : ISO5211

+ Tightness test:

API 598

ISO 5208,

EN12226-2

2122 U,Van Bướm mặt bích đôi GALA
