2 Zone Fire Alarm Control Panel AW-CFP2166-2

Manufacture: INGESCO
Product code: AW-CFP2166-2

The AW-CFP2166 2 Zone series conventional fire alarm panel is designed based on EN54 part 2&4 standard. And it is the central part of conventional fire alarm system, designed for applications requirin..

Zalo

Consulting hotline: 0944934114
Product information

he AW-CFP2166 series 2 Zone conventional fire alarm panel is designed based on EN54 part 2&4 standard. And it is the central part of conventional fire alarm system, designed for applications requiring smoke detector, bell, manual pull stations, and sprinkler supervision. Each zone can be disabled by a button. The basic unit offers 1 to 8 zones of initiation, up to 16 zones for larger applications.

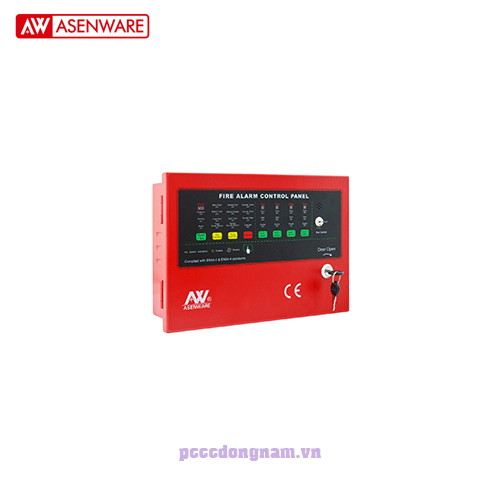

2 Zone Fire Alarm Control Panel AW-CFP2166-2

2 Zone Fire Alarm Control Panel AW-CFP2166-2

2 Zone Fire Alarm Control Panel Features

1.Maximum number of Analogue Conventional Detector Inputs: 20 detectors each  zone

2.Available Options: 2-4 Zone and 6-8 Zone

3.outputs for Alarm devices: Includes 2 bells/fire relay/ fault relay

4.Auxiliary resettable power output: 24VDC/ 100mA limiting protection

5.Automatic power switchover: mains power and secondary power (batteries)

6.Independent functional buttons with indication: User friendly interface for easy operation and recognition

7.Access levels to enter the panel

8.Fault supervision and notification: inputs, outputs, system, power, earth, fuse

9.Disablement: zones disablement 10.Evacuation: Fire drills to simulate fire alarm condition on panel

11.Silence: sounders and buzzer silence 12.Walk test: indicators check

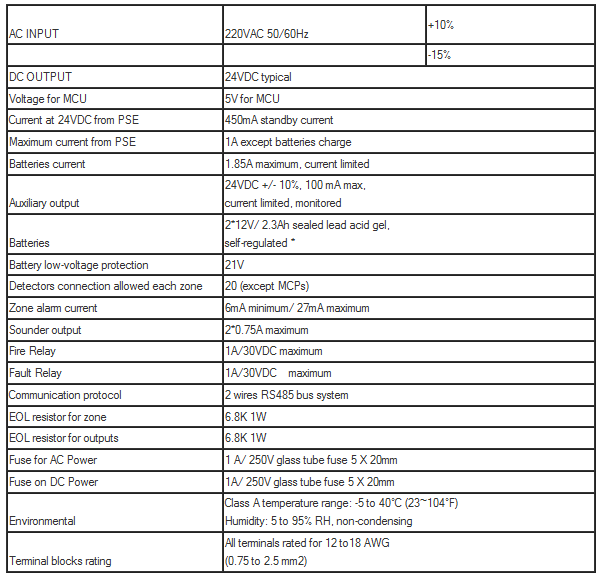

2 Zone Fire Alarm Control Panel Technical

2 Zone Fire Alarm Control Panel AW-CFP2166-2
